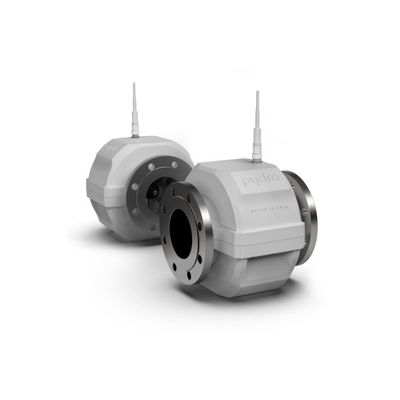

PYDRO - Model PT1 -Self-Powered Smart Turbine Flow Meter

The PT1 is a hydro-powered turbine flow meter for use in water abstraction wells, district metering areas (DMA) and custody transfer measurement of potable water. It measures flow and pressure at high accuracy levels everywhere in the network without the need of power supply. It delivers data to manage smart water networks, to reduce water leakage, to avoid pipe bursts and to do quality checks.

• Stand-alone flow meter with energy recovery at point of use.
• Only one moving part allowing long-term reliability and low maintenance.
• Fit & forget DMA solution than sends data right after installation – no experts needed.
• No additional sensors, batteries, data loggers or data transmitters required.
• Two-way real-time communication.
• Interoperability with any custom software.
• Low pressure loss.
• Wet or even flooded chambers do not affect the operation of the device thanks to its IP68 housing.

• Stand-alone flow meter with energy recovery at point of use.
• Only one moving part allowing long-term reliability and low maintenance.
• Fit & forget DMA solution than sends data right after installation – no experts needed.
• No additional sensors, batteries, data loggers or data transmitters required.
• Two-way real-time communication.
• Interoperability with any custom software.
• Low pressure loss.
• Wet or even flooded chambers do not affect the operation of the device thanks to its IP68 housing.

• Stand-alone flow meter with energy recovery at point of use.
• Only one moving part allowing long-term reliability and low maintenance.
• Fit & forget DMA solution than sends data right after installation – no experts needed.
• No additional sensors, batteries, data loggers or data transmitters required.
• Two-way real-time communication.
• Interoperability with any custom software.
• Low pressure loss.
• Wet or even flooded chambers do not affect the operation of the device thanks to its IP68 housing.

Hydraulic

• Pipe sizes : DN 100 (other sizes to follow)
• Nominal flow : Q3 = 40 m3/ h; R = 40
• Pressure loss at Q3 : 0,20 bar max
• Reverse flow : possible

Mechanical

• Materials : Stainless steel body, reinforced plastic for casing
• Protection : IP68 casing
• Weight : 15 kg
• Pressure grade : PN16
• Installation : Horizontal or vertical

Monitoring

• Pressure : Yes
• Flow : Yes
• Volume : Yes
• Temperature : Yes

Communication

• Data logger : Yes
• Standard Transmission : LTE Cat M1
• Antenna Connection : Yes

Certification

• DVGW - German drinking water certification
• OIML Class 2 (pending)
• WRAS (pending)
