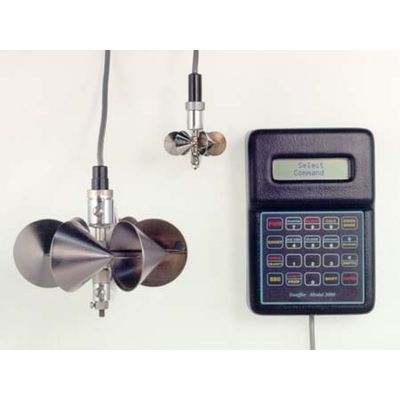

Retrofit - Model 2200-3000 -Pygmy Meters

SHARE

Price type AA and Pygmy meters were easily converted for use with Swoffer Model 3000 Indicators and the 2200 optical sensor but times have changed.... This page is for historical information only. The 2200-3000 instrument is no longer being manufactured. A few replacement sensors & retrofit meter parts may still be available for repairs or maintenance. Please contact Swoffer by email or phone for the latest information.

Most popular related searches
optical sensor
magnetic sensor
  • The Model 3000 Indicator is easy to set up and simple to use
  • No permanent alteration to the meters, simply remove and replace "catwhisker" contactors with supplied optic retrofit parts
  • A sensor-cable assembly then attaches by threaded nut to either meter as needed.
  • Model 3000 Indicator time-stamps data in the Discharge Mode and its memory holds widths, depths, velocitities and flow angles.
  • Read stream velocitydirectlyfrom 0.1 to 25 feet per second **
  • Data displayed in either feet or meters per second
  • Built in revolution counter allows using the original meter tables if desired
  • Model 3000 Indicator allows input and storage of 1000 "Stations" in any of 1 to 100 cross sections (Transects).
  • Input AA & Pygmy meter rating equations directly or field calibrate the meters using the Model 3000.
  • Upload velocity, width, depth, angle & time-date data for up to 100 cross-sections to files on your PC
  • The 3000 Indicator can figure and display the discharge on any cross section at any time
  • Compatible with all Price Type Meters & earlier Swoffer "2200" retrofits
  • The 3000 Indicator can also be used with the original and new magnetic head sensors if desired (no optical retrofit needed).
The Model 3000-2200 is sold as a retrofit instrument only. Swoffer Instruments does not supply the AA or Pygmy meters. These meters are available through other U.S. manufacturers. **Limited to standard velocity ratings for Price Type Meters.
