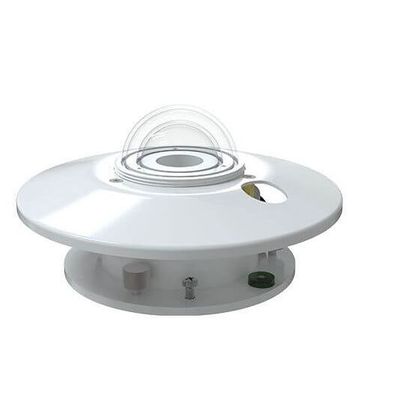

Renke - Model RS-TBQ-AL -Pyranometer Sensor
It uses the thermoelectric principle and can measure solar radiation with a spectral range of 0.3~3μm. A desiccant-filled drying cartridge prevents dew from forming on the inner sides of the domes. A bubble level and adjusting leveling screws enable the sensor to be leveled without using a leveling base. High accuracy and can be sent for inspection. The solar pyranometer price is affordable.
- Model: RS-TBQ-*-AL
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $146.8
The accuracy of this solar radiation sensor is very high and it supports inspection. This pyranometer can be widely used in solar energy utilization, weather station, agriculture, building material aging and air pollution and other departments to measure solar radiation energy. We also have a cheap solar radiation sensor for you to choose from.
- The glass cover should be kept smooth and clean, often wipe it with a soft cloth or fur
- There must be no water in the glass cover. If it encounters heavy rain, snow, ice, and other long-term weather, it is recommended to cover it
- It is recommended to check whether the desiccant in the dryer has become damp at regular intervals. The specific manifestation is that the orange turns into a dark color. If this happens, replace the desiccant in time, or remove the desiccant to dry and put it back into use
- The equipment has been used for more than two years, and the sensitivity must be re-calibrated by the manufacturer or measurement department
- Power supply range: 10V~30V DC
- Spectral range: 0.3~3μm
- Measuring range: 0-2000W/m²
- Resolution: 1W/m²
- Accuracy: ±3%
- Working environment: -40?~60?, 0%~100%RH
- Sensitivity: 7~14 μV·W-1·m2
- Internal resistance: about 300Ω
- Response time (99%): ≤30s
- Non-linear error: ≤±3%
- Corresponding error of directionality: ≤±30W/m²
- Temperature response error: ≤±8% (-40?~+40?)
- Yearly stability: ≤±3%
- Spectral selectivity: ≤±10%
- Cosine response error: ≤±5%
- Tilt response error: ≤±2%
- Output mode: RS485, 0-5V, 0-10V, 4-20ma
The pyranometer sensor working principle: the sensing element is a wire-wound electroplating thermopile, and the sensing surface is a black layer with high absorptivity. Utilize the thermal effect of radiation, absorb solar radiation to produce temperature difference, and output the measured value. It also has a temperature compensation function, which can accurately measure solar radiation.
