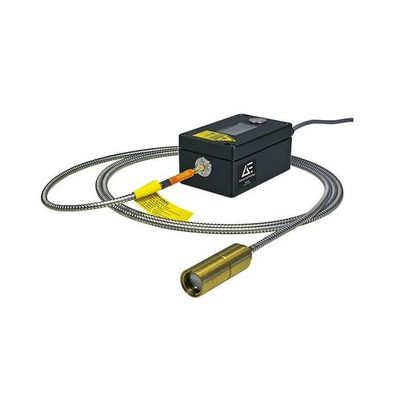

Impac - Model 50-LO Plus and IGA 50-LO Plus Series -Pyrometer With Fiber Optics for Non-Contact Measurements
Fast digital pyrometers with fiber optics for measurements on metals, ceramic, graphite, etc. Different optical heads available. Temperature ranges between 250 and 3500 °C. The Impac®50-LO plus and IGA 50-LO plus series comprise a range of highly precise, infrared measuring instruments, each equipped with fiber optics for non-contact temperature measurement on diverse materials like metals, ceramics, and graphite, within temperature ranges of 250 to 3500 °C. Included in this series are specialized versions, the IS 50/055-LO plus and IS 50/067-LO plus, which are characterized by their extremely short wavelengths. In addition, the IS 50-Al-LO plus has been specifically designed to measure temperatures on aluminum parts and profiles, demonstrating the series` adaptability to a wide range of applications.
- Switchable digital interface RS232/RS485
- Adjustable settings via the integrated keypad or the interface
- Optical fiber for high ambient temperatures up to 250 °C, unaffected by electromagnetic interferences
- Laser-targeting light
- Test current output
- Digitally display and store temperature readings
- Facilitate the measurement of the fastest heating processes
- Take advantage of very short response time
- Utilize three different types of optical heads for different measuring distances
- Enable the exact alignment onto the measuring object
- Operational temperature range (°C): 250 and 3500 °C (18 ranges in between)
- Spectral Range (µm): 0.55 and 1.8 (6 ranges in between)
- Measurement Uncertainty (°C): From 03% oR + 1 °C
- Optics (mm): Fixed optics, Focusable optics
- FOV (minimum spot size) (mmm): Min 200:1 (0.45)
- Alignment / Sighting: Laser targeting
- Interface / Output (mA): 0/4 to 20 mA
- Exposure Time t90 (ms): 1 ms
- Ambient Temperature (°C): 0 to 60
- Resolution (°C): 0.1
- Display: Illuminated LC display for temperature indication or parameter settings
- Protection Class: IP54
- Emissivity: 20 to 100% adjustable inside the instrument or via interface in 0.1% steps
- Weight (kg): Multiple. Please refer to Datasheet.
- Housing: Alu die-casting
- Connection: 12-pin connector
- Operating Position: Any
- CE-label: According to EU directives about electromagnetic immunity
- Parameters / Settings: Adjustable at the instrument or via serial interface: emissivity e, exposure time t90, analog output, address, baud rate, waiting time,°C / °F, setting of the maximum value storage, temperature sub range
- Isolation: Power supply, digital interface, analog output are galvanically isolated against each other
- Wavelength Repeatability (pm): 0.1% oR + 1 °C
