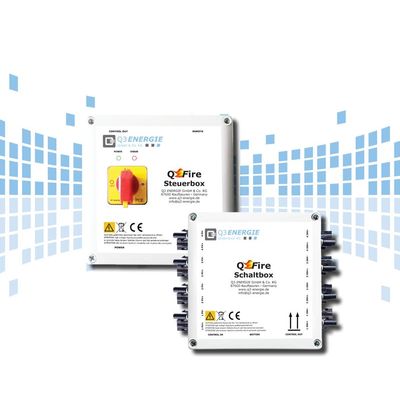

Q Fire - Fire Safety Switch for PV Systems
In the Q Fire Switch fireman`s switch, all lines from the isolation box on the roof are galvanically separated from the PV generator in the event of a switch. Thus all DC lines in the building are voltage-free. Switching is carried out via the control box, which is ideally located near the inverters or connected to another point on the AC grid.
Most popular related searches
- safe switching off of the PV generator even in an emergency
- AC coupled, can therefore be triggered at any time via the mains
- arc-free switching through modern switching technology
- The Q-Fire control box can be switched on and off using an external key switch.
- complete set; modularly expandable and easy to install
- switches back on automatically after a power failure
The AC coupled switch-off has the main advantage that in case of fire, for example, it is not necessary to look for a switch or that it is no longer accessible. By disconnecting the AC mains, the DC lines from the switch box on the roof are also automatically disconnected. If the AC mains is switched on again, the system also automatically restarts.
