SWAN - QA-Monitor AMI Inspector pH

• Measurement range:  1 to 12 pH
• Rechargeable battery for stand-alone operation for at least 24 hours.

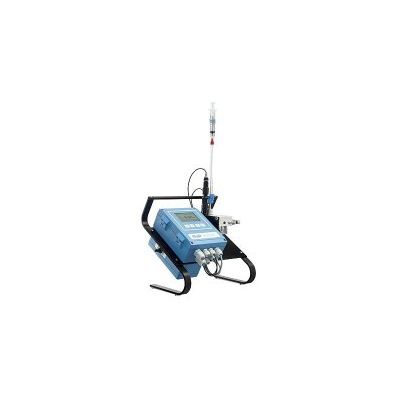

Complete portable system mounted on small aluminium panel with supporting stand and rechargeable battery.

• Transmitter in aluminum housing (IP 66) with 2 signal outputs for measuring value or for continuous control, 2 relays as limit switch or controller or timer, 1 alarm relay as summary alarm contact, 1 input for potential-free contact and including USB Interface.
• Flow cell QV-Flow IS1000 made of stainless steel SS316L with built-in temperature sensor (Pt1000), flow adjustment valve, digital sample flow meter, quick release vessel for easy sensor access and calibration.
• Swansensor pH SI, combined electrode with liquid electrolyte.
• Rechargeable battery for stand-alone operation of at least 24 hours.
