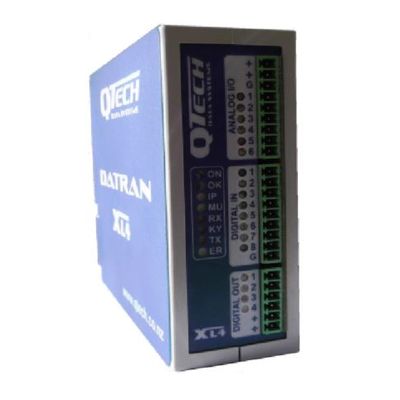

QTech DATRAN - Model XL4 DNP3 RTU -Industrial Controller System
The DATRAN XL4 DNP3 RTU is a fully featured Remote Telemetry Unit based on a powerful Q04 processor platform and is among the most compact, cost effective and full featured DNP3 RTUs now available. It is the perfect choice for integrating into your existing DNP3 network or providing the monitoring and control solution for any new DNP3 SCADA system.
The XL4 DNP3 RTU is also a powerful industrial controller that can be programmed in ladder logic to perform PLC type control functions.
Multiple communication options are provided by the on-board inclusions of an Ethernet port, a RS485 port and two RS232 ports.
The XL4 DNP3 RTU I/O is easily expanded by connecting additional DATRAN Expansion modules through the high speed, high performance RS485 port.
- Internationally renowned DNP3 source code
- DNP3 system communications with Integrated 10/100Mb/s Ethernet or RS232
- Q04 Processor - 32 bit 72MHz ARM7 processor
- 8 Digital inputs - expandable via expansion modules
- 8 Digital outputs - expandable via expansion modules
- 6 Analogue inputs - expandable via expansion modules
- LED indication of I/O status
- USB configuration with a Windows compatible diagnostic and configuration tool
- Small, compact and light weight minimising installation costs
- Cost effective solution for use in any existing DNP3 networks
- Easily expandable
- Industry proven, class leading reliability
