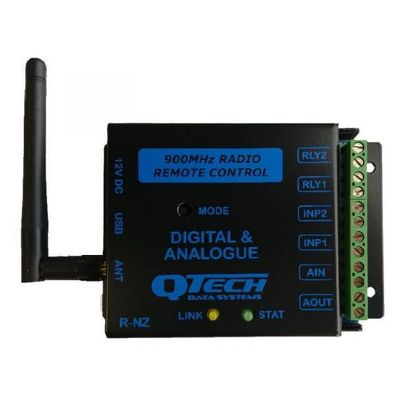

QTech - Digital & Analogue Wireless Point to Point
The Digital & Analogue version of the QTech Wireless Point to Point (WP2P) system enables you to transmit both an analogue 4-20mA sensor reading and two digital signals up to 4km. This WP2P allows the transmission of tank/reservoir levels, VSD/pump speed signals, etc., as well as providing remote switching with two relay contacts. You can also use a WP2P repeater to increase the range between WP2P modules, providing a cost effective way of routing around an obstruction such as a hill or a building.
Most popular related searches
- Low power consumption
- No programming or configuration and easy mounting and installation
- Line of sight operational ranges of ~350m with the supplied antennas, ~2km with whip antennas, and up to 4km with Yagi antennas
- Link status LED provides confirmation that the two modules are communicating
- Isolated 0-20mA Analogue I/O and relay outputs for maximum diversity
- State of the art digital radio using 900MHz Digital Modulation technology
- Frequency 917MHz to 927MHz
- RF Output 100mW
- Digital modulation technology
- Antenna connector SMA (Female)
- Dimensions L 112 x W 76 x D 26 mm
- Enclosure Steel, powder coated
- Power connector 2.1mm DC jack, centre positive
- Supply Voltage 6-24V DC (max 28 V DC)
- Short circuit and reverse polarity protection
- Current Consumption 6mA Typical
- Weight Less than 350g
- Frequency Bands – Ten frequency bands are available, allowing up to ten separate systems to be used in the same location.
- Radio Code – For extra security a six digit code is assigned to all devices.
