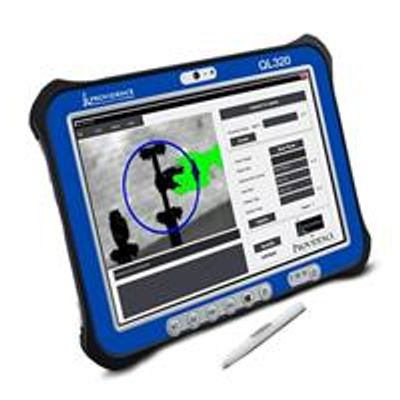

FLIR Systems - Model QL320 -Quantitative Optical Gas Imaging System For GFX320/GF320
The QL320 by Providence Photonics is a quantitative optical gas imaging (QOGI) system that allows surveyors to measure the leak rates for methane and other hydrocarbons. This eliminates the need for secondary sampling with a toxic vapor analyzer or similar tool. Plus, the QL320 does not require close contact with the gas in order to measure emission rates, making it a safer solution for quantifying gas leaks.
With the QL320, you can determine the mass leak rates (lb/h or g/h) or volumetric leak rates (cc/min or L/min) for most hydrocarbon gases. Measure the size of fugitive emissions from safe distances, as far as 100 feet.
ENSURES EFFECTIVE READINGS AND REPORTSThe QL320 has the built-in tools needed to validate leak surveys, plus a Δ temperature screening tool to determine suitablility of background conditions. In-field reporting includes archiving of measurements, colorized video and raw data for analysis and post-processing.
DESIGNED TOUGH FOR INDUSTRIAL ENVIRONMENTSThis tablet-based system is rugged enough for use in gas fields, refineries, and other industrial settings. The dust- and water-tight touchscreen tablet provides high contrast for easy reading in outdoor conditions.
OVERVIEW
Display Technology: Panasonic Toughpad FZ-G1
Size: 270 × 188 × 19 mm (10.6 × 7.4 × 0.75 in)
Touchscreen: 10-point gloved multi-touch + digitizer
CONNECTIONS & COMMUNICATIONS
Input: On-screen QWERTY keyboard, electronic waterproof stylus
ENVIRONMENTAL
Environmental: MIL-STD-810G certified, IP65-certified sealed all-weather design
IMAGING & OPTICAL
Display resolution: 1920 × 1200 WUXGA
Display Size: 256.5 mm (10.1 in)
Compatible cameras: FLIR GFx320, FLIR GF320
MEASUREMENT & ANALYSIS
Measurement Modes: Mass leak rates (lb/h or g/h), volumetric leak rates (cc/min or L/min)
Measurement Tools: ΔT screening, on-screen plume color highlight, batch recording, field gas calibration
POWER
Battery type: Li-ion rechargeable battery
