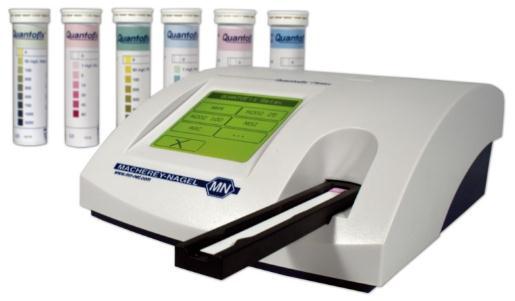

QUANTOFIX Relax - Automated Reader For Test Strips
The QUANTOFIX Relax is a revolutionary step in test strip analysis. With this new system, MACHEREY-NAGEL offers an entirely objective way to read QUANTOFIX test strips, making the system particularly suitable if results are critical to your decision making. The system simplifies testing procedures and the decision processes by eliminating the subjectivity of visual readings and by providing higher accuracy. Especially if you test large numbers of strips, the QUANTOFIX Relax helps and supports you with easy data administration and quick testing procedures. Additionally, the QUANTOFIX Relax allows you to get actual quantitative results - no gradation and estimation of in-between values is necessary.
Automated reader for QUANTOFIX test strips
- Highest precision
- Objective readings
- Easy result administration
The QUANTOFIX Relax can change the way you work and test. The system enables you to focus on your core processes and is the perfect tool for your testing procedures.
Highest precision
- Quantitative results across the complete measuring range
- Higher accuracy and no in-between value guesswork
- Assure your decision making
Objective readings
- No influence of external light or human color perception
- Reproducible results independent of the operator
- Increase safety and comfort
Easy result administration
- Immediate print outs
- Data can be transferred to a computer
- Save time to focus on your core business
Auto Start
Select the test, dip the strip and place it on the instrument. Without pressing any further button, the instrument starts the measurement automatically. So, operating is clean and easy.
Graphic display
The graphic display shows all relevant information at a glance. The result is given with a test specific confidential interval. Thus, you can easily decide which further steps are needed for your process.
Touch screen
The touch screen makes using the instrument a real pleasure. All functions are easily accessed with a touch on the screen. You can also enter sample IDs with the on-screen keypad or an external keyboard. This makes documentation of results safe and easy.
Interface options
The instrument features a USB as well as an RS232 interface. It can easily be connected to existing laboratory information systems and also to PCs.
Printer
The result is printed using a fast and silent internal printer. Thus, you can easily staple the results to production files for later check or QC procedures.
Easily change tests
With just two touches on the screen you can quickly change between your favorite tests. Select five different tests as your favorites out of a large variety of tests programmed into the instrument. All information is already programmed so you can immediately start the measurement when needed.
Memory for 200 measurements
Up to 200 measurements can be stored. Using internal functions, positive readings are easily filtered out, enabling further diagnosis whenever necessary.
- QUANTOFIX Relax
- REF 913 46
- Instrument memory
- 200 test results including sample ID
- Interface
- User: touch screen, alphanumeric input, password protection
- Computer: USB and RS232 interface for connection to PC, PS/2 interface for connection of keyboard and / or barcode scanner
- Dimensions / Weight
- Depth: 20 cm (7.9 inches)
- Width: 16 cm (6.3 inches)
- Height: 7.5 cm (3.0 inches)
- Weight: 710 g (1.90 lb), (w/o batteries and power supply)
- Power requirements
- 110–240 V AC, automatic
- Battery powered operation (optional) with 6 AA batteries
- Operation
- Temperature range: 5–40 °C (41–104 °F)
- Humidity range: 20–80 % relative humidity, non condensing
- Calibration: automatic, self calibrating
- Capacity
- 50 strips per hour
