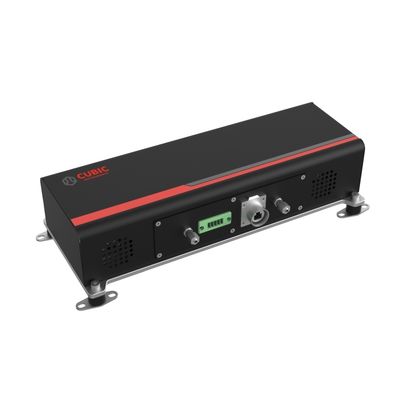

Cubic Instruments - Model Gasboard-2522 -Quantum Cascade Lasers N2O Sensor
Gasboard-2522 is a high-precision N2O gas sensor based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) and employing a quantum cascade laser (QCL) source. It is designed for highly selective and sensitive N2O measurement in automotive exhaust emission monitoring under the latest Euro 7 performance requirements. Gasboard-2522 integrates a high-quality optical probe with a proprietary gas cell to deliver high measurement accuracy, high sensitivity, strong resistance to cross-gas interference, and long-term stable operation. Featuring a modular design, Gasboard-2522 supports easy installation and system integration. Calibration and configuration are available via an RS485 communication interface. Applications include automotive exhaust emission monitoring, environmental monitoring, and laboratory research.Most popular related searches
quantum cascade laser
tunable diode laser absorption spectroscopy
nitrous oxide sensor
laser absorption spectroscopy
exhaust emissions monitoring
nitrous oxide monitoring
absorption spectroscopy
vehicle emissions monitoring
tunable diode laser
emissions monitoring
- QCL-based narrow-band laser absorption spectroscopy with ultra-high sensitivity for N2O measurement, resistant to interference from other gases, humidity, and particulate matter.
- Ultra-fast response time of ≤ 3 seconds for real-time monitoring.
- Full-scale linear digital output for consistent, repeatable, and traceable measurement.
- High-performance optical probe for stable operation and long service life.
- Modular design for easy system integration and future upgrades.
Principle
Tunable diode laser absorption spectroscopy (TDLAS)
Measurement
N2O
Range
0~1000ppm
Accuracy
±0.3%FS or 2% reading
Zero Drift
<2ppm (within 2 hours)
Resolution
0.1ppm
Response Time T90
T10~T90＜3S
Constant Temperature
60℃
Warm-up Time
＜30min
Operating Temperature
（-7 ~ 50）℃
Operating Humidity
0~98%RH (non-condensing)
Operating Voltage
12V±5%
Operating Current
＜8A
Communication
RS-485
Dimension
L*W*H:372*155*81mm (excluding air nozzle & foot pad)
Storage Condition
-40 ~ 85℃; 0~98%RH (non-condensing)
