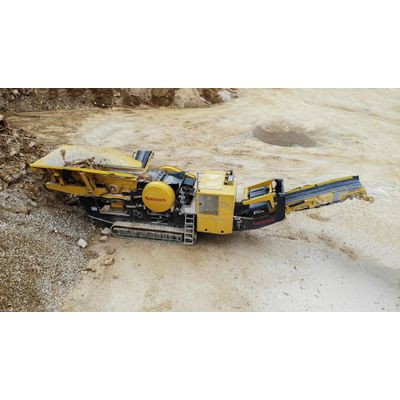

Keestrack - Model B5 -Quarry Jaw Crusher
FromKeestrack N.V.
For hard stone, the quarry version!
Available in diesel hydraulic and plug-in electric/hybrid version with drop-off engine/generator compartment for producing at zero carbon footprint.Most popular related searches
zero carbon footprint
quarrying
wheel loader
primary crushing
carbon footprint
jaw crusher
quarrying crusher
vibrating screen
wheeled excavator trailer
- Feed size up to 600 mm (24”)
- Independent double deck vibrating pre-screen 2.300 x 1.000 mm (7’7" x 3’3")
- Feed opening 1.110 x 750 mm (44” x 29”)
- C.S.S. min. - max. 45 - 180 mm (1 3/4” - 7”)
- Capacity up to 400 tonnes / hour
- Full hybrid electric driven, energy saving version available
- Hydraulic sliding frame for service access under the feeding and scalping unit
- Optional single deck after screen 2.800 x 1.200 mm (9'2" x 3'11")
- Intake hopper suitable for wheel loader and excavator, 5 m³ (6,5 yard³)
- Hydraulic gap adjustment
- Smart sequential auto start/stop from remote
- Ability to track while producing
- 2 speed track drive
- Extensive option list to configure to your application
- Removable engine /generator compartment on full hybrid e version

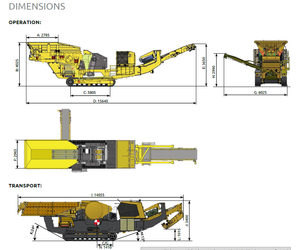

- Weight
44,2 t (45 sT) - Length
14.000 mm (45”)
15.655 mm (51’3”) - Height
3.400 mm (11’)
4.025 mm (13’3”) - Width
2.725 mm (8’10”)
6.045 mm (20’)
- Quarrying and mining
- Granite, Basalt and hard stone
- Primary crushing
- Gravel
- Coal, slag and others
