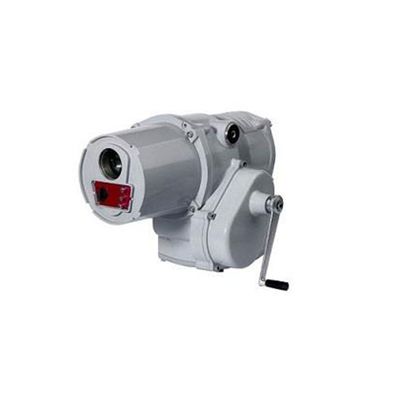

GREATORK - Model AVAT/AVATM01 to AVATM06 -Quarter Turn Actuator

Quarter Turn Actuator models AVAT/AVATM01 to AVATM06 are designed for automation processes in ball and butterfly valves, offering versatility with the option to integrate a lever. These actuators are engineered to deliver a torque range of 125Nm to 2000Nm (equivalent to 90ft-lbf to 1475ft-lbf), making them adaptable for various industrial applications. The actuators support voltage supplies from 220Vac to 460Vac, suitable for both single and three-phase connections, and are built with an IP68 enclosure to ensure protection against environmental elements. With a class F and optional class H insulation, these actuators boast a robust double-seated structure. For enhanced functionality, optional modulating I/O signal inputs of 4-20mA are available, along with explosion-proof features compliant with ATEX and CUTR standards. They are compatible with fieldbus systems such as Modbus and Profibus, integrating seamlessly into existing automated systems.
