Quincy - Model AIRnet -Compressed Air Piping System

AIRnet is offered in a wide variety of sizes to accommodate virtually all installation needs and pressure requirements. AIRnet is not simply a compressed air piping system it also holds industry ratings to be ideally utilized in compressed air, vacuum, and inert gases applications. AIRnet is a viable solution to accommodate a wide variety system requirements.

When compared to traditional piping installations AIRnet displays a dynamic advantage in installation time and cost. The AIRnet system is designed to provide maximum airflow and reliable performance. Backed by a 10 year product warranty and unparalleled customer support. AIRnet is stocked in large quantities at our US distribution center ensuring product availability.

Sustainability

• Optimized inner body design minimizes flow resistance and pressure drop in the fittings
• Low friction factor and seamless connections minimize pressure drops in the pipe network
• Superior sealing technology ensures a leak free system and maintains performance over time
• Durable and corrosion resistant materials offers a maintenance free system

Safety

• Safety factor of 4 for all diameters (burst pressure)
• Camera control and automatic assembly guarantee zero defect manufacturing
• Plastic components and pipe clips comply to UL 94 HB and UL 94 V-2 for flammability
• Torque indicators ensure sufficient torquing

AIRnet will launch the new Stainless Steel line in 2018. This new addition provides additional options to the medical and food & beverage manufacturers where air quality standards must meet the highest levels of purity.

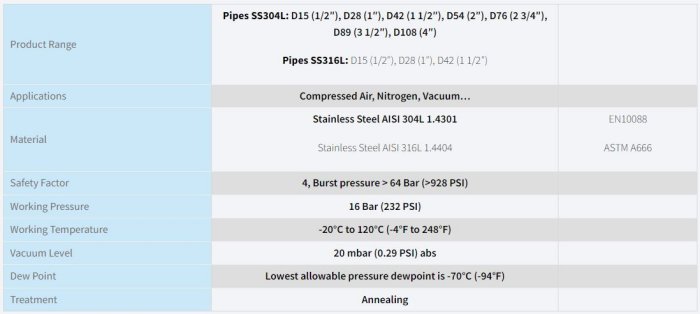

Quincy is excited to introduce the new AIRnet Stainless Steel line in multiple sizes. The product is available in both 304L and 316L Stainless Steel. The press fit technology combined with the FKM sealing material ensure a leak proof system that can withstand harsh caustic conditions and still deliver premium performance.

AIRnet is a durable lightweight option that is modular to allow for increased design options on an existing system. Quick and secure connections ensure a leak proof system that is watertight up to 4X’s the working pressure. This combined with the internal surface coating allows the system to operate at lower pressures and still deliver the needed supply at the point of use.
