QYTeco - 5" Screen Pipe Inspection Camera
Upgraded technologies are applied to the manufacturing process of the product. With those advantages mentioned above, the product has wide scopes of application, such as CCTV Camera.
Most popular related searches
pipe inspection camera
inspection camera
pipe inspection camera system
pipe inspection
sewer camera
pipe inspection system
sewer drain
water main pipe
pipe system
drain camera
- Certification: CE , FCC , RoHS
- Technology: WDR
- Style: Mini Camera
- Type: CCTV Camera
- Sensor: CMOS
- HDMI Format: 720P
Shenzhen QYTeco Limited has been strengthening the development of new products and has gained promising results. Technological innovation is the fundamental reason for Shenzhen QYTeco Limited to achieve sustainable development. In the future,Econonical 5" Screen Pipe Inspection Camera will increase more capital and technology investment to continuously improve the comprehensive competitiveness of the enterprise, and strive to remain invincible in the market forever.

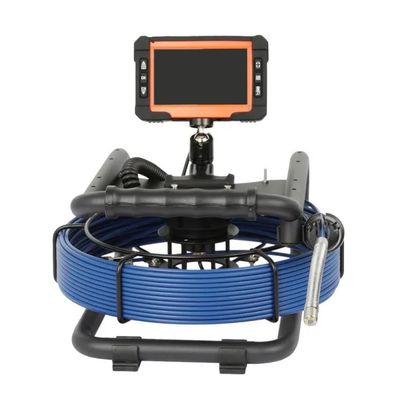

This pipe inspection camera system is designed as a real-time inspection camera and to unveil the internal objects and/or structures with the illumination of the highlight LEDs, it is specially designed for pipeline, sewer, drain, duct, chimney, plumbing, building, swimming pool, milk pipes, water mains, cable pipes, central air conditioning, pipes ventilation systems and other plumbing related sites, and many more where a pipe inspection camera system is required.
This system is suitable for pipes with inner diameter at 15mm-200mm (1/2``-4``). Ability to go through 90°bends in pipe with inner diameter at 50mm(for 21mm camera with 5.3mm push rod), 32mm(for 12.8mm camera with 4.8mm push rod).
- Compact and Portable design for easy carry and storage;
- Detachable and collapsible monitor for adapt to various work angles;
- Camera head with sapphire glass lens cover and 304 stainless steel housing allow the camera to withstand repeated hits in various pipes;
- Rotatable cable reel mounted in metal frame for convenient operation;
- Waterproof level: IP67 (camera tube only);
- 5`` LCD color monitor to real-time inspecting and easy to take pictures or record videos;
- On-Screen date & time stamp;
- Support external storage TF Card, max storage up to 32GB;
- System supports two kinds of cameras:φ12.8mm(with 4.8mm push rod) and φ21mm(with 5.3mm or 12.8mm push rod) are available;
- Push rod fiberglass cable length 10/20/30m for options;
- U-type metal frame make the cable reel easy to clean.
- 4.8mm in blue cable for both 12.8mm and 21mm HD sewer camera, optional 5/10/20/30M;
- 5.3mm in red cable for 21mm HD sewer camera, optional 5/10/20/30M .
