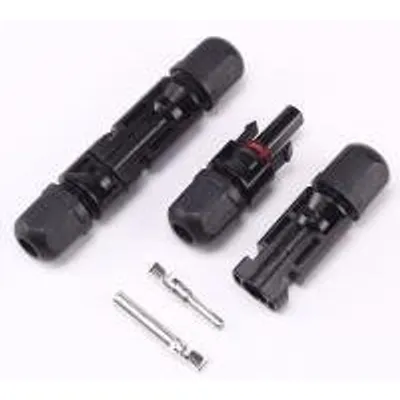

R&X Energy - Model IP68 -MC4 Solar Connector Waterproof
MC4 Solar Connector Male and Female PV Connector Waterproof IP68 Solar Cable Connector
Most popular related searches
*Photovoltaic cable coupler.
*Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for 25 years.
- Electrical Features::
- Rated Current:22A(2.5mm2), 35A(4mm2),40A(6mm2)
- Withstanding Voltage:1500V DC(IEC),1000V/1500V DC(UL)
- Contact Resistance:≤0.3mΩ
- Protection Class:Class II
- Mechanical Features:
- Temperature Range:-40 ºC~+90ºC
- Protection Degree:IP2X,unmated;IP68,mated
- Wire Size Range:2.5/4/6mm2(14AWG,12AWG,10AWG)
- Unmating Force:200 Newton
- Material Features:
- Insulation Material:PC
- Contact Material:Copper,Tin plated
- Flame Class:UL94-V0 or UL94-5VA
