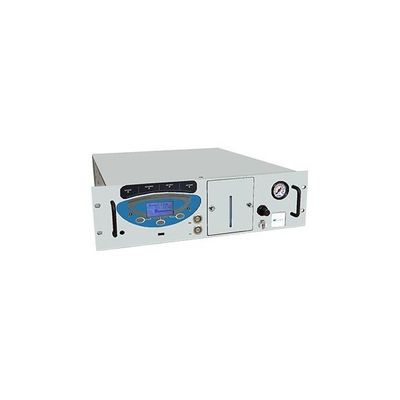

F-DGSi - Model RACK.FID.MB.H2 -Rack High Purity Hydrogen / Zero Air 19
This unit can provide both hydrogen gas and zero grade air to FID detectors and Carrier gas on Gas Chromatographs. Hydrogen gas is produced from deionised water using the exclusive 100% titanium Proton Exchange Membrane (PEM) technology for H2, which provides a very high purity reliability and new longer life. Zero air is produced by purifying compressed air sourced from the air network to a total hydrocarbon concentration of < 0.05 ppm (measured as methane). The RACK.FID. MB.H2 generator combines the hydrogen serie MB.H2 and Zero air serie ZA generators in one unit. The touch screen LCD interface provides simple and user friendly management of all functions on the unit.
Improved chromatograph result
The reduction of hydrocarbons on zero air part, including,methane to < 0.05 ppm decreases the background noise level and gives the baseline much better stability, considerably increasing detector sensitivity and ensuring precise analytical results. The use of hydrogen as a carrier gas allows lower temperature elution, thus extending the life of the chromatograph column.
Hydrogen as a carrier gas is faster and more sensitive than the more-expensive helium. Run time savings of 25% to 35% without a decline in resolution.
Increased laboratory efficiency
A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.
Save money
The unit only requires connection to a suitable socket and to external source of compressed air for the zero air part. The investment can be paid back in less than one year.
Improved safety
The very limited internal volume (less than 50 ml for H2) allows safe use of the gas generators where the use of cylinders is risky or prohibited. The application of tested safety technologies stops the unit in the event of leaks or malfunctions.
Simple installation
Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.
- FOR ZERO AIR PART :
• HC < 0.05 ppm
• CO < 0.05 ppm
• Flow available: 1.8; 5 L/min
• External clean and dry air compressor required at maxi. 7 bar (101.5 psi) - FOR HYDROGEN PART :
• Flow rate available: 100, 160, 250, 300, 500, 600 cc/min
• Exclusive 100% PEM titanium cell
• Pressure up to 11 bar (160 psi)
• Hydrogen purity: > 99.9996%
• Drying system: static, maintenance-free • LCD touch screen with simple use menu
• Built in water tank capacity of 3L
• Remote PC monitoring in standard via RS232 or RS485 to interface the unit with customer`s PC software (allow the end user to be connected with the manufacturer for remote diagnostics)
