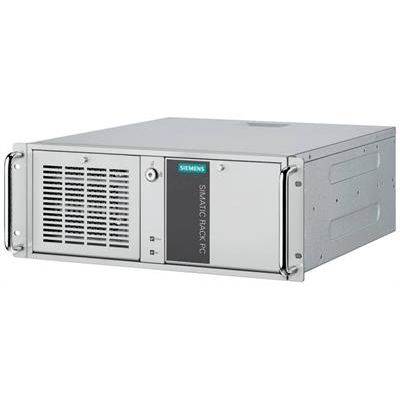

SIMATIC - Model IPC347E -Rack IPC
FromSiemens AG
Entry-level version of the SIMATIC industrial PCs in 19" format. The SIMATIC IPC347E is especially suitable for production applications requiring a PC with greater robustness and a higher availability than office PCs. In particular for visualization and SCADA tasks, data acquisition and management, and measuring and testing tasks in discrete manufacturing or process automation, but also, for example, in logistics or laboratory automation. It is designed for 24-hour continuous operation, even with increased temperature, vibration, shock and EMC requirements, and comes with overpressure ventilation and dust protection filters. Continuous operation without power loss is ensured even in ambient temperatures up to 40 °C.
Most popular related searches
process automation
industrial PC
laboratory automation
control cabinet
fan filter
SCADA data
dust monitoring
dust filter
shock and vibration
SCADA
- Designed for 24/7 continuous operation
- Reliable continuous operation right from the beginning due to run-in test under maximum load in production
- No additional dust protection measures required thanks to filter mat and overpressure ventilation
- Robust all-metal enclosure
- High performance
- Powerful processors up to Intel Core i5 of the 4th generation
- RAM can be expanded up to 16 GB
- Windows 10 ready as well as pre-installed Windows 7 Ultimate available
- Optimized price
- Available in 7 equipment versions
- Can be expanded easily, e.g. additional RAM
- All versions are available from stock to ensure short delivery times
- Space-saving and cost-optimized mounting in control cabinets with depths starting at 500 mm
- Variety of interfaces
- 7 x USB interfaces, of which 2 x USB3.0 interfaces and one internal USB interface
- Expandable with 7 x PCI(e) slots
- Easy connection to existing systems with VGA, DVI, PS2, and 2 x COM (RS232/RS422/RS485) interfaces
- 2 x Gigabit Ethernet ports
- Maintenance-friendly enclosure
- Fan and filter mats can be replaced without tools
- Lockable front cover
- Front USB (with lockable front cover) for easy maintenance access
- Prepared for mounting on telescopic rails
