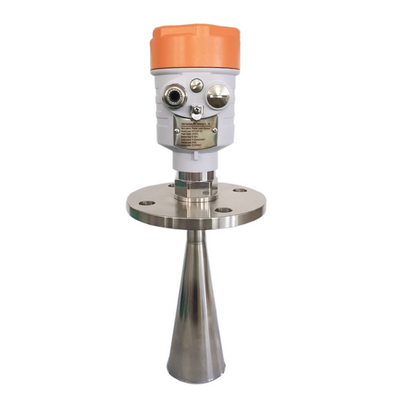

Huachuang - Model HCDAR-62 -Radar Liquid Level Sensor
26 GHz RS485 Radar Liquid Level Sensor -40~250? 0~70m Industrial Tank Level Meter. This HCDAR-6X series adopts a 26G high-frequency radar sensor, with a maximum measurement range of up to 70 meters. The antenna undergoes further optimized processing, and the new microprocessors with higher speed and efficiency can perform signal analysis. The instrument can be used for reactors, solid silos, and very complex measurement environments.
Most popular related searches
radar liquid level sensor
radar level sensor
radar liquid level
liquid level sensor
level sensor
radar sensor
tank level monitoring
- Application: Liquid
- Slurry
- Measuring Range: 0~70m
- Connection Process: Thread
- Flange
- Medium Temperature: (-40~250)?
- Process Pressure: (-0.1~2)MPa
- Accuracy: ±3mm
- Signal Output: (4~20)mA HART/RS485 MODBUS
- Explosion-Proof Grade: Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb
- Protection Grade: IP68
- Frequency Range: 26 GHz
