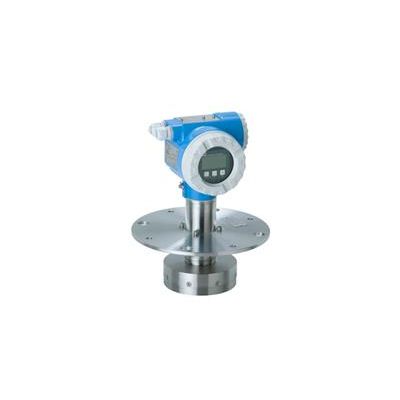

Micropilot - Model FMR532 - Radar Measurement Device
From Level Measurement-
For high accurate non-contact level measurement in stilling well applications in custody transfer. The Micropilot FMR532 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR532 free space radar with planar antenna is specifically suited for stilling well applications. Micropilot FMR532 offers cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.
Benefits
-
0.8mm accuracy (2σ value)
-
National approvals (NMi, PTB) for custody transfer
-
Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590
-
Easy on-site operation via menu-driven alphanumeric display
-
Easy commissioning, documentation and diagnostics via FDT/DTM technology (FieldCare)
-
Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply
-
Unique drip-off antenna design eliminates measurement error due to condensation build-up
Field of Application
With planar antenna particularly suited for stilling well applications with ranges up to 38m (124ft).
-
Process connection: Flange
-
Temperature: -40 to +150°C (-40 to +302°F)
-
Pressure: Vacuum to +25bar (Vacuum to +362psi)
-
Maximum measuring range: 38m (124ft)
-
Accuracy: Better than ±1mm
-
C-band: 6GHz
-
International explosion protection and custody transfer certificates, overfill prevention WHG, SIL, marine approval
Features and Specifications
-
Measuring principle
Level radar
-
Characteristic / Application
Ideal for high precision measurements in stilling well
-
Supply / Communication
4-wire (HART)
-
Frequency
C-band (~6 GHz)
-
Accuracy
+/- 1 mm, custody transfer
-
Ambient temperature
Standard:
-40 °C ... 80 °C
(-40 °F ... 176 °F)
For calibration to regulatory standards:
-25 °C ... 60 °C
(-13 °F ... 131 °F) -
Process temperature
-40 °C ... 150 °C
(-40 °F ... 302 °F) -
Process pressure absolute / max. overpressure limit
Vacuum ... 25 bar
(Vaccum ... 362 psi) -
Main wetted parts
316L + PTFE
-
Process connection
DN150 ... DN300 / 6' ... 12'
-
Application
-
Max. measurement distance
38 m (124ft)
-
-
Communication
4 ... 20 mA
-
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, NEPSI
-
Safety approvals
Overfill prevention WHG
-
Design approvals
EN 10204-3.1
NACE MR0175, MR0103 -
Marine approval
GL/ ABS
-
Application limits
Maximum measuring range is dependent on the tank form and/or application
Free space and many baffles
FMR540
