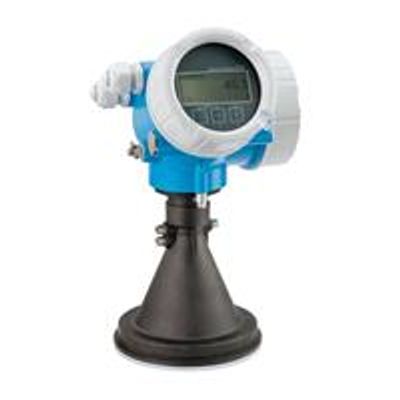

Micropilot - Model FMR56 -Radar Measurement Time-of-Flight

SHARE

Economically efficient basis model for level measurement in solids. Micropilot FMR56 is particularly designed for light-duty process conditions as they occur in silos or bins for solids. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

Most popular related searches
non-contact level monitoring
radar measurement time-of-flight
level monitoring
explosion protection certification
asset management system
continuous level monitoring
explosion protection
laboratory homogenizer
water storage silo
RFID tracking

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

  • Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

  • Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

  • World`s easiest proof test concept for SIL and WHG saves time and cost

PP-plated horn antenna can be easily aligned to the surface of the solids by the mounting bracket or a turnable seal.

  • Process connections: Mounting bracket or slip-on flange

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: -1 to +3bar (-14.5 to +43.5psi)

  • Maximum measuring range: 30m (98ft)

  • K-band: 26GHz

  • International explosion protection certificates, SIL, 5-point linearity protocol

Continuous / Solids

  • Measuring principle

    Level radar solid

  • Characteristic / Application

    For simple applications:
    Reliable non-contact level measurements in silos or storage tanks for bulk solids

  • Specialities

    Heartbeat Technology,

    Bluetooth® commissioning,

    Operation and maintenance SmartBlue App,

    Safety and reliability with Multi- Echo Tracking,

    HistoROM,

    RFID TAG for easy identification,

  • Supply / Communication

    2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)

    4-wire (HART)

    Bluetooth® wireless technology and App (optional)

  • Frequency

    K-band (~26 GHz)

  • Antenna

    Horn DN80/3", PP plated

    Horn DN100/4", PP plated

  • Accuracy

    +/- 3 mm (0.12 in)

  • Ambient temperature

    -40 °C...+80 °C

    (-40 °F...+176 °F)

  • Process temperature

    -40 °C...+80 °C

    (-40 °F...+176 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...3 bar

    (Vacuum...43.5 psi)

  • Main wetted parts

    PP, UP

  • Process connection

    Flange:

    UNI DN80...DN150
    (3"...6")

    Mounting bracket

  • Max. measurement distance

    30 m (98 ft)

  • Communication

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

    Bluetooth® wireless technology

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, KC

  • Safety approvals

    SIL

  • Options

    Display,

    Customized parameterization

    Remote operation via SmartBlue App using Bluetooth®

  • Application limits

    DK < 1.6

    Reduction of the max. possible measuring range through:

    Media with poor reflection properties

    Angle of repose

    Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling

    Build-up, above all of moist products
