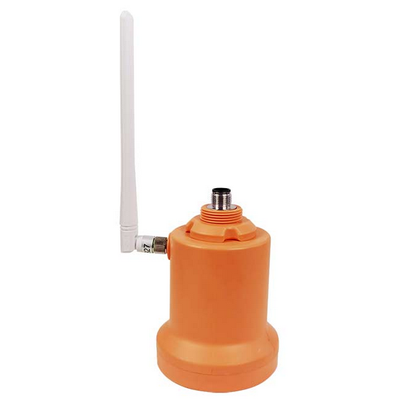

Huachuang - Model HCDAR-8H -Radar River Water Level Sensor

The HCDAR-8X series radar level sensor is a level-measuring instrument that uses FMCW (Frequency Modulated Continuous Wave) specialized millimeter wave technology, with an operating frequency of 76 - 81 GHz.Signal output options include 2-wire 4 - 20mA, 4-wire 4 - 20mA, or RS485. It can achieve a maximum measuring range of up to 120m, with a blind zone of 8cm. The antenna beam angle is approximately 3°. Its outstanding performance enables accurate measurement of liquids, solids, and powder materials.
