FTS DigiTemp - Model SDI 81 -Radar Stage Sensor (RSS)

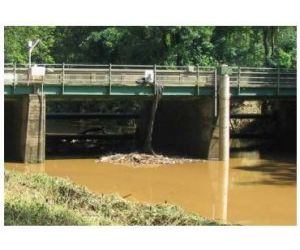

Use Case: Open water, rivers, stilling wells, commonly used by USGS. Accuracy: +/- 2mm (0.007ft).
Most popular related searches
Best in Class Accuracy

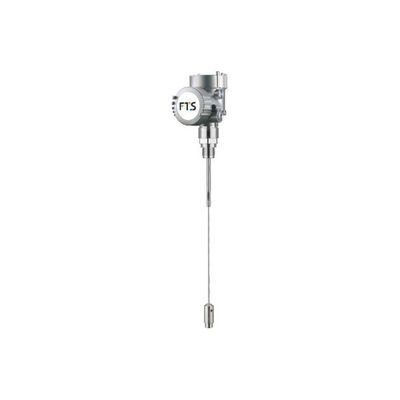

The FTS Radar Stage Sensor 81 with guide wire is optimum for level measurement in storage tanks, standpipes and wells with narrow diameters. It has best in class accuracy of +/- 2mm (0.007ft), an IP66 rating and connects seamlessly with your existing DCP through SDI-12.
The FTS Radar Stage Sensor 81 is exceptional when it comes to measuring the level or interface of liquids in standpipes, metering tanks, or storage tanks. It is extremely versatile and can be found in almost every industrial sector.
- Military Connector
- OEM Display Module
- Radar Stage Sensor
- 1.8m (6ft) SDI-12 Output Cable
- Bubble Level
Accuracy
- Standard Range [0.5m to 35m (1.64ft to 114.83ft)]: +/- 2mm (0.007ft)
Communication
- Output: SDI-12
Power
- Supply Current @ 12VDC: 4mA
- Voltage Requirements: 9.6 to 48VDC
Temperature
- Ambient: -40° to +80°C (-40° to +176°F)
Physical
- Variants
- 10m waveguide
- 15m waveguide
- Weight: 1.81kg (4lbs) plus waveguide
- Material
- Housing Material: Aluminum
- Wetted Parts: Stainless Steel
- Protection Rating: IP66/67
