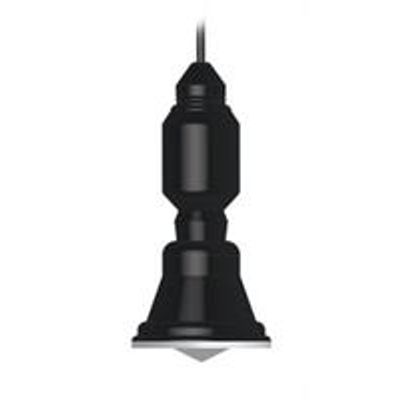

Pizzi - Radar Water Level Measurement System
The Radar Water Level System is a sensor suitable for measurements in large tanks and small channels and for the measurement of small and large flows. Available with different scales, it allows precise and reliable measurement and no contact with the liquid being monitored.
Particularly suitable for level measurements in static situations, it can also be equally effective for measuring liquids in dynamic regimes.
Measurement is independent of the type of liquid measured and its density.
This instrument is particularly suitable for monitoring levels in tunnels of concrete, RCC and in earth dams and for the monitoring of leakage and drainage. Also used for measurement of levels in basins.
Especially recommended for:
- Lakes
- Wells
- Tanks
- Harbors
- Docks
- Channels
- Streams
- Rivers
The Radar Water Level System allows the measurement of levels also in dynamic conditions. The instrument is characterized by:
- Non-contact measurement
- Easy installation
- No wear and tear
- Requires no maintenance
- Pressure independent
- Temperature independent
- High measuring accuracy including high range
- Available with analog and digital outputs
- Can be integrated with GPRS transmitter
Extremely short microwave pulses are radiated by the antenna system to the product to be measured. They are then reflected by the product’s surface and received back by the antenna system. The round-trip time of the signals is proportional to the level.
A special processing procedure ensures reliable and precise measurement.
If you have any requests or questions about our instruments or if you have special needs that require different solutions from the standard, please contact us. Our team will provide all the necessary information and will be very happy to work with you to study, develop and customize instruments and solutions suitable for your specific needs.
