Golden Harvest - Model GH-8000 -Radial Gates for Flow Control
Golden Harvest, Inc. offers the Model GH-8000 Radial (Tainter) Gates, an engineered solution for flow control in flood control, hydropower, and other large conveyance systems. These gates are designed primarily for overflow service, although they can be equipped with top seals for shutoff applications when required. The gate disc is engineered to fit wide, unobstructed waterways or spillways, effectively transferring hydraulic loads through robust spanning ribs to the radial arms. These arms then direct the load into trunnion pins and abutments, ensuring structural stability. An efficient sealing system includes resilient seals across the bottom and sides, and the horizontal top seals are available with breast wall configurations. To facilitate operation, tandem cable drum hoists are coupled with electric or manual actuators, with self-locking worm gear type gearboxes. Actuators can include features such as position indication, limit and torque switches, and automation for opening and closing controls.- Open Channel or Spillway Flow Control
- Increase Water Elevations and Upstream Storage Capacity
- Flow Diversion
- Efficient - Low Maintenance Design
Golden Harvest, Inc. Radial or Tainter Gates are most commonly used for flow control structures on flood control projects, hydropower projects and other large conveyance systems. The radial gate is typically designed for overflow service. Shutoff service radial gates are available with top seals when required.

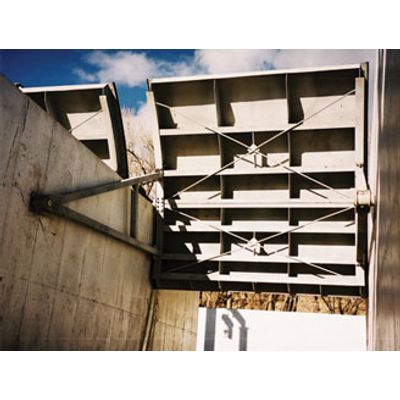

General Design: The radial gate disc is designed for mounting in wide unobstructed waterways or spillways. An accurately curved disc transfers the hydraulic load through the spanning strong ribs to the attached radial arms. The two radial arms, located at the sides of the opening, then transfer the load into the trunnion pins and abutments.
Resilient seals are mounted across the bottom and up both sides of the gate to provide a tight seal in the closed position. Horizontal top seals are offered with the breast wall design. Stainless steel sill and side plates are set flush in the concrete to provide a smooth sealing surface.
Operation of the radial gate is achieved by means of tandem cable drum hoist coupled with an electric or manual actuator. Manual or electric lifts are provided with gear boxes of the self-locking worm gear type. Actuators are available with position indication, limit and torque switches, and automated opening and closing controls.
Model GH-8000 Radial (Tainter) Gates
This section covers Fabricated Radial Gates and Operators. The equipment provided under this section shall be fabricated, assembled, erected, and placed in proper operating condition in full conformity with the drawings, specifications, engineering data, instructions and recommendations of the equipment manufacturer.
The radial gate with appurtenant seals, side seal plates, sill, hoist and accessories shall be supplied as indicated on the drawings, specified, or otherwise required for a complete, properly operating installation, and shall be the latest standard product of a manufacturer regularly engaged in the production of fabricated gates.
Approved Manufacturers
Gates supplied under this section shall be Model GH-8000 Radial Gates as manufactured by Golden Harvest Inc. or engineer approved equal.
Quality Assurance
The manufacturer shall have experience in the production of substantially similar equipment, and shall show evidence of satisfactory installations. The manufacturer?s shop welds, welding procedures and welders shall be qualified and certified in accordance with the requirement of the latest edition of AWS Sections D1.1, 1.2 and 1.6.
The fully assembled gates shall be shop inspected and adjusted before shipping.
Submittals
1. The manufacturer shall submit for approval by the purchaser, drawings showing the principal dimensions, general construction and materials used in the gate and lift mechanism.
2. The manufacturer shall submit for approval by the purchaser, complete and stamped engineering design calculations.
Materials and Construction
Gate Disc
The gate disc shall consist of a curved steel face plate with the center of the curvature concentric with the centerline of the trunnion pins. The curved face plate shall be reinforced with horizontal and curved vertical structural members to transmit the hydraulic thrust to the trunnion arms. The gate disc shall be fabricated in one section with a minimum material thickness of 3/8-inch. The disc deflection shall not exceed 1/720 of the nominal gate width.
Radial Arms
The radial arm assemblies shall consist of structural members to transmit the hydraulic load from the gate disc to the trunnions. The unsupported length of the trunnion arms shall not exceed an L/R ratio of 150.
Trunnions
The trunnions shall be fabricated steel and welded to the trunnion arms. The trunnion arms shall be equipped with bronze sleeve bearings. Lubrication fittings shall be provided for lubricating the trunnion bearings. The trunnion assembly shall be designed to be supported by a beam extending across the opening or brackets anchored into the abutments. Provision shall be made for field adjustment of the trunnion pins after placement of the gate.
Seals
Resilient J-bulb seals shall be places along the bottom and both sides of the gate to prevent excessive leakage. Seals shall be attached to the disc with a stainless steel retainer bar and allow lateral seal adjustment or seal replacement.
Sill Plates
The bottom and side sill plates shall be stainless steel with minimal surface roughness. Sill plates shall be anchored and embedded in the side walls and at the gate invert. Leveling nuts shall be provided for fine tune alignment prior to placing grout.
Lifting Assemblies
Cable Hoist
The hoists shall consist of hoist base, hoist operator, cable drums, drum shafts, cables, and bearing bracket to operate the radial gates. The operators shall be adequate for opening of radial gates to the required height under the specified operating head. The hoist shall be furnished with a steel drum shaft and twin steel interconnecting drums. Drums shall be grooved, accurately machined to the same diameter and attached to the drum shaft. Galvanized or stainless steel cables and clamps shall be furnished for field connection of the drums and to the gate.
Electric Motor Actuator
The motor shall be specifically designed for radial gate service and shall be for high torque, totally enclosed, non-ventilated construction, with motor leads brought into the limit switch compartment. The electric motor drive shall be self contained, complete with a weatherproof motor having Class B insulation, limit and torque switches, integral reversing controls and controls as specified. The gear reducer shall be of the worm gear type directly coupled to the electric motor drive. Worm gears will be self-locking to hold the gate in position. The motor duty rating shall be sufficient for one complete open to close to open (or reverse) cycle.
Materials
Part: Material
- Gate disc skin plate: Steel Plate ASTM A-36
- Disc frame members: Structural Steel ASTM A-36
- Seals: Neoprene J-bulb ASTM D-2000
- Sill plates - Side and invert: Stainless steel ASTM A-276, Type 304
- Trunnion arm: Steel ASTM A-500 GRADE B
- Trunnion bearing: Self Lubricating Bronze
- Trunnion shaft: Stainless Steel ASTM A-276, Type 304
- Cable drums: Cast Iron ASTM A126, class B or Mild Steel A36/A36M
- Cables: Stainless steel ASTM A-276, Type 304
- Retainers, Fasteners and Anchors: Stainless steel ASTM A-276, Type 304
