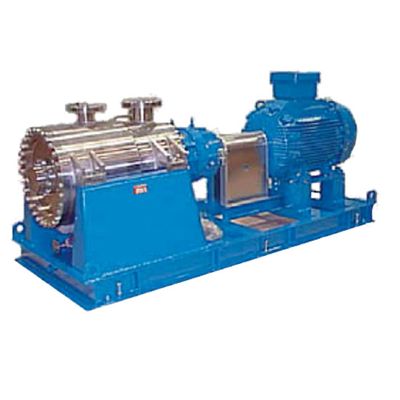

M Pumps - Model CN MAG MS API 685 -Radially Split Multistage Bearing Pump
FromM Pumps S.r.l.
Radially split, multistage, between- bearings pumps heavi duty BB5 to API 685 STD 2nd Ed. CN MAG-MS API685 pumps range meets the requirements on custom-built solutions in the process industry, in the following areas: Chemical and pharmaceutical, transfer of aggressive, highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps).
Most popular related searches
between bearing pump
food process plant
mechanical seal pump
multistage pump
Hastelloy C 276
corrosive liquid
secondary containment
pump seal
chemical transfer
industrial pump
- Meeting and exceeding API STD 685 2nd Ed. Radially split, multistage, between bearings pumps, heavy duty design BB5. Single or double rear containment shell (in Hastelloy C®, Titanium Grade 5 or Hybrid – patented).
- Secondary control/containment on demand according to API STD 685 2nd
- ANSI 316 (basic version)
- Duplex or Super Duplex
- Hastelloy C® 276
- Incoloy 825
- Titanium et Other alloys based on NORSOK/NACE requirements
- Capacity: 1000 m 3 /h
- Delivery Head: 2200 m
- Speed: 1450 / 2900 rpm
- Press. Syst: 150 bar
- Temperature: +400 °C
