Federal Signal - Model RSL-SM and RSL-SMM -Radiant Sound Modules

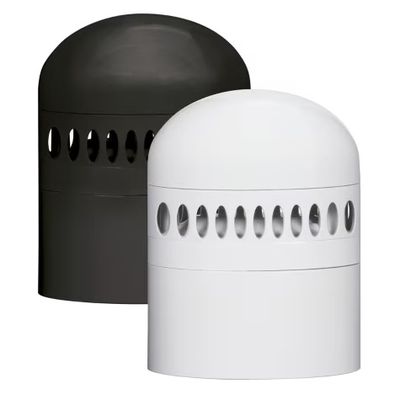

Radiant sound modules add an audible alert to a visual stack light application. Depending on the application need, there are two possible solutions: RSL-SM contains 2 tones (intermittent and continuous) over 2 channels. It allows for use of both channels, by connecting 2 of the 7 available contacts of the wiring module. RSL-SMM contains 16 tones (mixed types) over 2 channels. It allows for use of both channels, by connecting 2 of the 7 available contacts of the wiring module. For each channel it is possible to select the sound via DIP switch prior to assembling the unit.
Most popular related searches

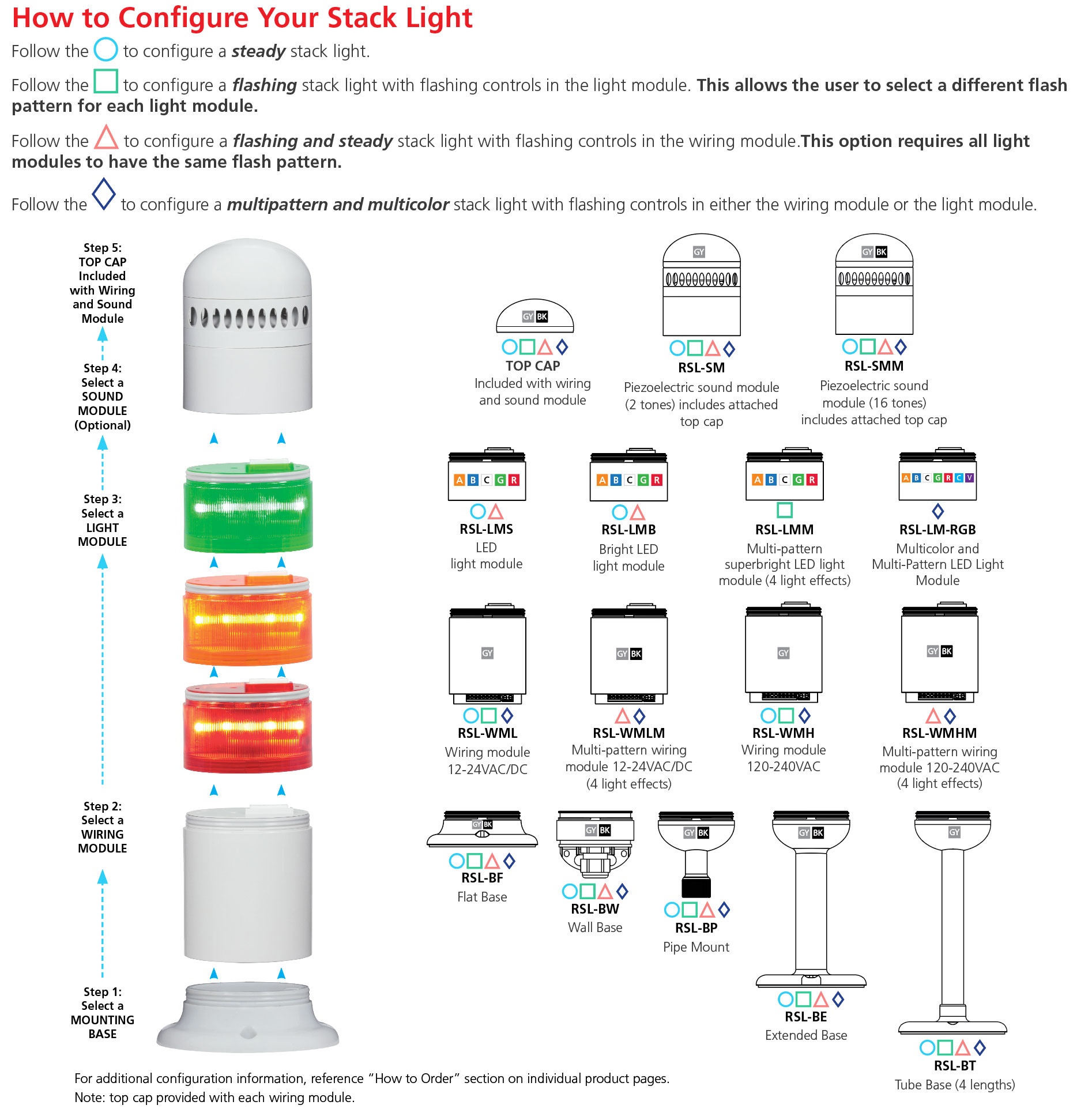

- Modular design offers up to (7) light modules: (6) light modules & (1) sound module (one channel) or (5) light modules & (1) sound module (two channels)
- RSL-SM contains two tones, RSL-SMM contains 16 tones
- Volume control in model RSL-SMM
- Compatible with 12-24 Vac/dc or 120-240 Vac*
- Indoor/outdoor use
- PLC compatible
- Type 4X, IP66 enclosure when installed with both gaskets included on each module
- IP69K compliant when installed with both gaskets included with each module
- CE Certified
- UL and cUL Listed
*Voltage dependent on selected wiring module
- Environmental Rating: Ordinary Location
