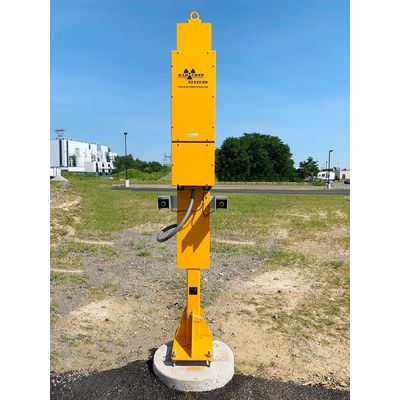

RadComm - Model RC 7000 -Radiation Detectors

The RC7000 uses large volume, high quality, Sodium Iodide crystal scintillators. This technology is specifically designed to enhance a radiation detection systems ability to recognize specific gamma energies which can adversely affect alarm thresholds. The RC7000 uses a series of advanced isotopic identification algorithms to provide best in class detection and identification.

• Systems can include any number, or combination, of PVT, Crystal & mixed detectors
• Existing PVT based systems can be upgraded to include RC7000 and RC7058 detectors
• All systems have optional neutron capability

• Detection Method: NaI(TI) Crystal
• Detector Enclosure Rating: NEMA 4
• Energy Range: 20KeV to 3.0 MeV
• External Operating Temperature: -4°F to 131°F (-20°C to to 55°C)
• Data Output Fields: Date, time, occupancy duration, unit  ID, alarm condition, background count, gamma count, nuclide ID
• Data Output: XML, ASCII
• Languages Supported: English, Czech, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Finnish
• Agency Compliance: ANSI N42.38 / IEC 62484, ANSI N42.42 / IEC 62755
• Accessories: Camera
• External Alarm
• Supervisory Software
• Neutron Detection: Optional
