PoliGate Vehicle G4 - Radiation Portal Monitor
FromPolimaster

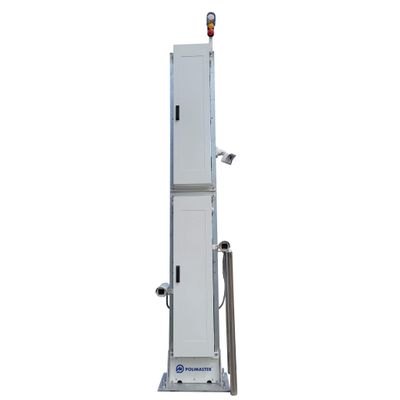

The PoliGate™ Vehicle G4 is a double-sided gamma-only Radiation Portal Monitor (RPM) equipped with four 11L-gamma detectors and is a high-sensitive fixed system designed for permanent installation and providing continuous radiation detection and monitoring of moving objects.
The PoliGate™ Vehicle series is an essential tool for safeguarding against the potential threat of nuclear materials entering secure areas and can be used for screening trains, trucks, vehicles, cargo containers, luggage, and people.Most popular related searches
radiation portal monitor
portal monitor
radiation portal
radiation monitoring
scrap metal industry
nuclear waste disposal
gamma detection system
gamma radiation portal monitor
radiation portal monitoring system
gamma radiation portal
RPMs have modular design and may have one-pillar or two-pillar configurations, adaptable height and width according to customer requirements. Monitors can be equipped with video monitoring system.
- High sensitivity
- Advanced data processing algorithms
- Modular design
- Easy-in-use
- Audible and light alarms
- Indoor and outdoor installations
- Reliable, automatic, 24/7 operation
- PC connection through the Ethernet port
- Video monitoring system (option)
- Integration into a nuclear protection network controlled by a central PC (option) with further integration into higher level networks controlled by an Expert Center (option)
- Cars
- Pedestrians
- Luggage
- airports, seaports, railway stations, customs and border checkpoints, nuclear plants and other facilities of the nuclear industry, nuclear waste disposal and storage sites, scrap metal industry, governmental offices, banks and post offices.
- Energy range: 0.02 to 3.0 MeV
- Type of registered radiation: gamma
- Ingress protection: IP65
- Weight: one gamma detector – 120 kg; control unit - 20 kg
- Operating temperature: -30 up to +50°C
- Atmospheric pressure: from 84 to 106.7 kPa
- Humidity: up to 98 % at 40°C and lower, no moisture
- Mean service lifetime: no less then 8 years
- Mean recovery time: no more then 60 min
- Mean time between failures: no less then 10000 hours
- Minimum detectable amounts of radioactive materials, control zone 6 x 4.5 m : : 8 km/h : 20 km/h
- 241Am, MBq, (µCi) : 1.5 (41) : 2.3 (62)
- 137Cs, MBq, (µCi) : 0.16 (4.3) : 0.24 (6.5)
- 60Co, MBq, (µCi) : 0.16 (4.3) : 0.15 (4.1)
- 57Co, MBq (µCi) : 0.20 (5.4) : 0.30 (8.1)
- 133Ba, MBq (µCi): 0.10 (2.7) : 0.15 (4.1)
- 238U, g: 1300 : 1900
- 235U, g: 80 : 120
- 239Pu,g: 2.3 : 3.4Number of detection units: 4 detectors
- Power:
- industrial AC network (115-230V range) : 47/63 Hz frequency
- built-in accumulator battery : 12 V DC (back-up). Accumulator battery enables continuous working of the monitor during 8 hours (no less than 8 hours).
- Power consumption: no more then: 120 V•?.
