Logotronic - Model Gealog -Radiation Shield
FromLogotronic GmbH
Radiation and precipitation can significantly distort the measurement of humidity and air temperature if the sensors are not properly protected. In addition, if the protection is not adequate, there is also a risk of mechanical damage to the sensors.
Most popular related searches
radiation shielding
lamella material
radiation protection
temperature transmitter
humidity temperature transmitter
air temperature sensor
air flow sensor
flow sensor
humidity measurement
air sensor

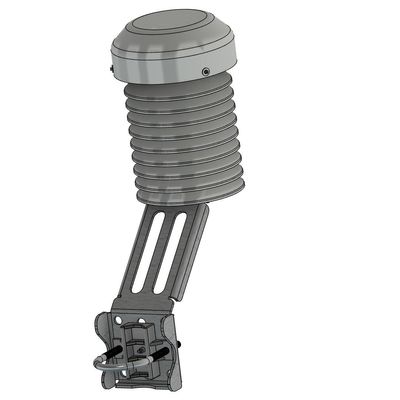

Radiation shield for precise measurement of air temperature
- Optimal slat shape prevents direct and indirect solar radiation
- Durable due to the use of high quality UV-resistant plastic material
- Mounting on both vertical and horizontal pipes
- Versions with ventilation by fan or without artificial ventilation
- Pulse output for monitoring the fan function
- Different sensor receptacles available for different sensor configurations
Die Verwendung dieses Strahlungsschutzes in Verbindung mit geeigneten Sensoren reduziert diese Effekte auf ein Minimum. Die Ventilation erzeugt einen konstanten Luftstrom um die Sensoren und verhindert die Bildung eines eigenen "Mikroklimas" im Strahlungsschutzgehäuse. Due to its outstanding technical features such as its compact design, the " Gealog Radiation Protection for Air Humidity/Air Temperature Transmitter, Ventilated" is predestined for use in professional measurements. The white UV-resistant louvers prevent direct and indirect sunlight on the sensors. Due to the special geometry of the lamella arrangement, the air flow around the sensors is hardly obstructed. The lamella material has very good reflective properties, low thermal conductivity and excellent weather resistance. The fan draws the air in from below, flows it around the sensors and blows it out again under the top cover. The fan has a pulse output that provides one pulse per revolution and can be used to monitor the fan function.
