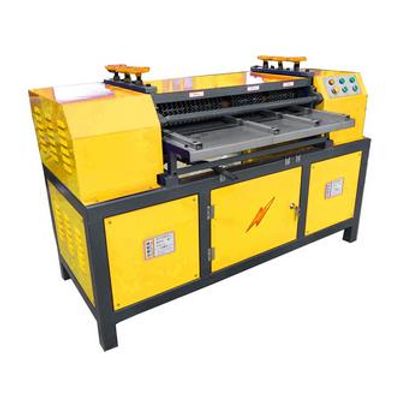

Vaner - Model V-1200P -Radiator Recycling Machine
https://www.vanermachinery.com/V-1200P-radiator-recycling-machine-p.html VANER 1200P radiator recycling machine is specially designed for radiators. Before operation, the heat sink should be cut into regular shapes.Then place the cut radiator smoothly into the inlet. Within seconds, the copper tube and aluminum fins will be discharged separately. Contact us to Order Your Machine. Email : carrey@vanermachinery.com Mobile&whatsapp : +86 18821659423Most popular related searches
radiator recycling system
radiator recycling
durable plastic coating
recycle air conditioning
metal cutting blade
plastic coating
air conditioning
can separator
water radiation
can recycling system

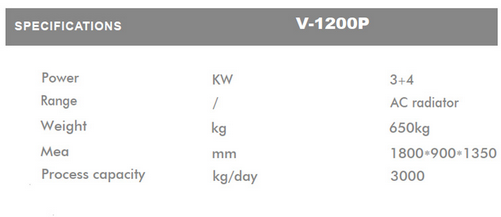

- Product Item:V-1200P
- Weight : 650KG
- Mea : 1800*900*1350mm
- Processing capcity: 3000KG/day
- Power : 3+4KW
The copper tube remains intact,Aluminum fins will be crushed into pieces. 1200P radiator recycling machine can peel off single-layer and two-layer radiators. The center distance between the blades comes in three sizes: 19mm, 21mm, and 25mm. This means it can separate three heat sinks.
- OEM & ODM.
- One year warranty.
- 99.99% separation rate.
- High quality components.
- Specially customized reducer.
- Body color: durable plastic-coated.
- XUANFENG motor or other same grade motors.
- DELIXI electric box components or other same grade compents.
- Widely used in recycling air conditional radiator,car radiator,water box radiator.
Raw material pretreatment:
- Cut off the iron ends from the radiator, in case they will damage the blades.
- Cut the clean radiators to 30-40cm wide with a band saw to t the width of material inlet .
- Band saw is an optional accessory.
- 99.9% separating rate.
- Compact structure, taking up small area.
- Safe and easy operation, high efficiency.
- Voltage is customizable.
- The center distance can be customized.
- No damage to copper pipe, no copper loss.
