NBB Planar - Model B2 EX -Radio Remote Control for Hazardous Areas

• Frequency band EU: 434,050 - 434,750 Mhz
• Frequency band USA: 433,100 - 434,750 MHz
• RF output: < or = 10 mW
• Typical operating range: 100 - 300 m
• Antenna: integrated
• Response time of
• control command: 15 ms
• SMJ-Technology 1
• Advance alert "battery empty": 15 minutes
• Datafeedback: optional

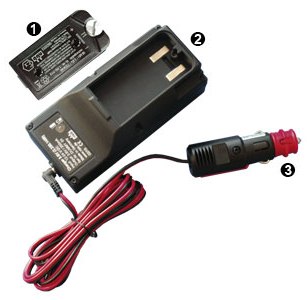

NBB battery system with explosion protection ➊

• Quick-change battery system: NiMH / 750 mAh
• Voltage: 3,6 V
• Operating time: 40 hours
• Charging time approx.: 3 to 4 hours
• Charging technology: external via charger
• Measurements: 69 x 36 x 24 mm
• Weight: 60 g

Additional Information:

• Self-cleaning contacts of the battery
• Wear parts are always on the battery side

Battery Charger ➋

• Suitable for: 230 V/AC, 110 V/AC, 12/24 V/DC
• Optional plug form: ➌ EU, USA, JP, GB, AU

Temperature measurement for an improved recharging

Data feedback

• range
• Transmitter signal strength
• Status of the function
• Customized data feedback information and logos on request illustratable

LBT frequency search
When switching on or when switching the frequency, a check is made to determine whether the frequency channel used is reserved by another transmitter. If this is the case, the next frequency channel is checked until it is ensured that the transmitter can operate without faults.

LBT is short for Listen before Talk.
