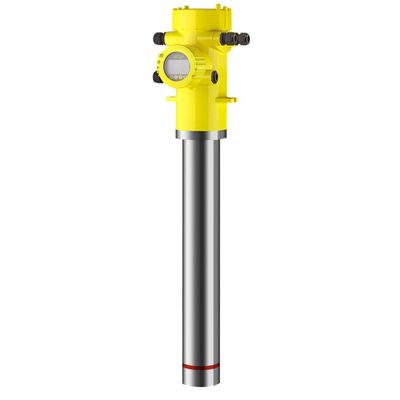

SOLITRAC - Model 31 -Radiometric Sensor for Continuous Level Measurement
Application area: SOLITRAC 31 is ideal for use on cylindrical vessels, reactors, autoclaves, separators and mixing vessels. SOLITRAC offers extraordinarily high accuracy over the entire measuring range. The SOLITRAC 31 is a radiation-based sensor with PVT rod detector for continuous measurement of liquids and bulk solids. It is suitable for level measurement under extreme process conditions, with critical product features or in aggressive products. The SOLITRAC 31 is ideal for use in cylindrical vessels, reactors, autoclaves, separators and mixing vessels.
Most popular related searches
level monitoring
liquid level monitoring
dust explosion protection
continuous level monitoring
mixing vessel
explosion protection
autoclave vessel
dust explosibility
intrinsic safety
dust explosion
- Best measurement performance through PVT detector with maximum sensitivity
- Simple mounting through supplied accessory
- High plant availability through non-contact measurement
Storage tanks for highly toxic liquids
Level measurement and point level detection in highly toxic media
To the applicationLime kiln
Level measurement in the lime kiln
To the application- Measuring range -Distance: 3 m [Meter - Foot]
- Process temperature: - [°C - °F]
- Process pressure: - [Bar-kPa-psi]
- Accuracy: ±0.5%
- Materials, wetted parts: No wetted material
- Seal material: no media contact
- Housing material:
- Aluminium
- Stainless steel (precision casting)
- Protection rating: IP66/IP67
- Output:
- Profibus PA
- Foundation Fieldbus
- 4 ... 20 mA/HART - four-wire
- Ambient temperature: -40... 60 °C
Approvals
- Scope:
- ATEX / Europe
- CSA/Canada
- FM / USA
- EAC (GOST) / Russia
- IEC/worldwide
- NEPSI/China
- INMETRO/Brazil
- Explosion protection:
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- Overfill protection: WHG
- SIL qualification: SIL2
Display & adjujstment
- Adjustment:
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator Software (e. g. AMS™. PDM)
- Indication:
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
