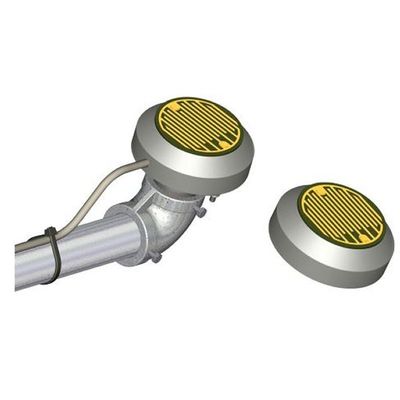

Wittich Meteo - Model RSA -Rain Detector

• detection : rain and snow
• principle : resistance variation measured through gold-plated detection electrodes
• power supply : 24 VDC or 24 VAC, ± 200 mA
• relay SPDT, 2A(30 VDC) or 0,5A(125 VAC)
• delay : RSA-1 on 10 sec, off 5 min.
• RSA-3 on 10 sec, off 30 sec.
• operating temp. : -25..+40 ºC, 24 VAC power supply in
• conditions below -15 ºC recommended
• dimensions : diameter 80 x 27 mm
• detection surface : diameter 45 mm
• mounting : 2 studs ss M4 x 12 mm
• cable : 4 x 0,25 mm², L = 5 metres, shielded.
• (shield connected to system ground!)
• protection : IP-65
• weight : 600 g
• installatation sensor : under an angle of 15 ºC

The RSA is a rain sensor with a processor controlled relay contact and surface temperature control and is ideal for climate control systems such as sun blinds and greenhouse automation.

For even better climate control we have the programmable sensor RSA-P. This reliable rain sensor can be programmed en read out on PC by the user
