Wittich MeteoModel RSG-4 & 8RA-4 -Rain Sensor

SHARE

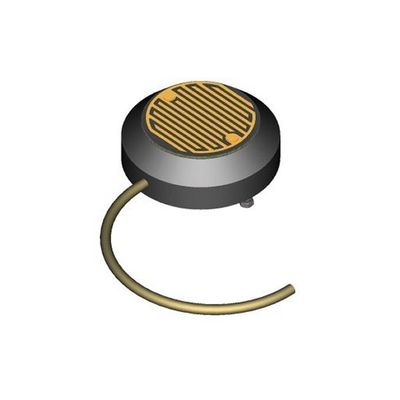

The rain alarm consists of a sensor model RSG-4 and a signal converter model 8RA-4 and provides a switch-over contact when it rains. The sensor is gold-plated and corrosion resistant. Heating elements in the sensor prevents unintended alarm when there is heavy mist or dew. The sensitivity of the switch-over contact is adjustable on the signal converter. The unit is used to open and close windows or greenhouses.

Most popular related searches
  • detection : rain and snow
  • power supply : 230 VAC, 50/60 Hz
  • sensor RSG4 : thermally controlled electrodes 18VDC, max 0,5 A between which the resistance is measured
  • output signal : potential free contact for max. 250 VAC, 8A non inductive
  • delay times : selectable between 10 secondes and 9,5 minutes with DIP switches
  • installation : under an angle of 15°
