Rainwater Infiltration Tank System

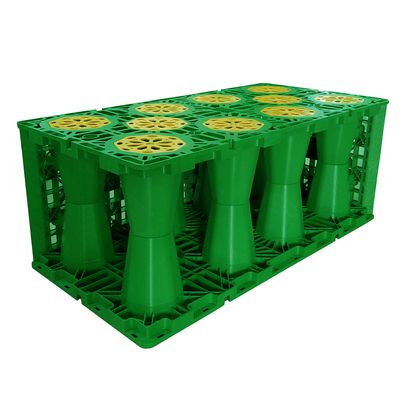

Rainwater Infiltration Tank is formed by many geocellular unit rainwater modular tank, it can help us to infiltrate large quantity of rainwater into ground. In this way we can prevent our living area from flooding when it rains heavely. Rainwater infiltration tank is also called rainwater soakaway tank, soakaway crates, etc. We are the first manufacturer of rainwater harvesting system in China. The production capacity of our plastic geocellular unit moduldar tank reach 1200CBM per day. We have completed more than 500 projects for rainwater harvesting in China. And we export huge quantity of our product to Middle East, South America and Asia Market each year.- Model No. : YBS-M1000
- Size : 1000x500x500mm
- Weight : 15kg/tank
- Void Ratio : 95%
- Storage Capacity : 250L/tank
- Load Capacity : > 450 KN/m2
- Temperature : -30?-120?
- Material : 100% Virgin PP
- Color : Light Green
Flexible Design: The size and shape of the underground stormwater infiltration tank can be designed and made according to the need of the site.
High Loading Capacity: the vertical loading capacity of the rainwater modular tank can reach 60 tons, the lateral loading capacity can reach 14.5 tons.
High Void Ratio: the void space inside the rainwater tank reaches 95%,we can storage more water in it.
Long Service Life: The designd service life of the modular tank is 50 years.
Easy Installation: the assembling of the modular tank can be done just by hands, no large machines required.
Time Saving: one person can install 15-25 cubic meters each day.
Compact Storage: the modular tank can be piled on pallets, one 40'HC container can hold 356.5cubic meters.
Environmental protection: the modular tank is made of 100% Recyclable PP
Money Saving: Compared with the traditional stainless steel and concrete pools, Our Rainwater Module reduces the time cost, transportation cost and later maintenance cost in many ways.
This modular geocellular unit Rainwater Infiltration Tank can be installed under traffic area ,parking lot, landscape, green belt.
