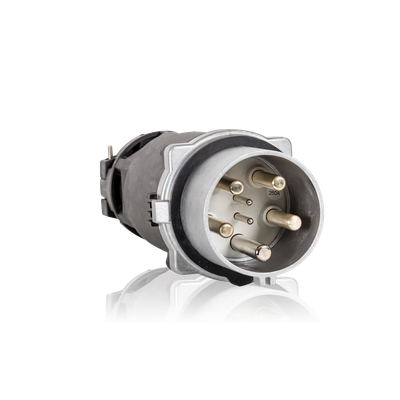

Rauscher & Stoecklin - Industrial Electrical Connectors
Rauscher & Stoecklin specializes in providing robust, safe, and efficient industrial electrical connectors tailored for challenging applications. These connectors are critical in environments requiring extreme mechanical resilience, such as tunnel construction, or where vibration-proof elements are essential, like in railway systems. Built with over a century of expertise, these connectors are rated for currents from 160 A to 600 A and voltages up to 1,000 V. They feature silver-plated contacts for minimal power loss, reducing energy costs and enhancing efficiency. Safety is a cornerstone, with pilot contacts for electrical interlocking and finger touch protection on sockets, minimizing risk during operation. The design supports excellent reliability under adverse conditions, including temporary water immersion and dust protection, and can handle loads up to 2 tonnes, with temperature resilience ranging from -40°C to +100°C. Customization options allow for project-specific adaptations, supported by accessories like water-resistant housings and vibration-proof screws. Rauscher & Stoecklin’s connectors also excel in mining environments, enduring conditions like heat, dust, and icing, ensuring personnel safety and operational integrity.
In applications where industrial electrical connectors are used, safety, quality and reliability all take top priority.
Whether in tunnel construction where extreme mechanical strength is required or railway applications where vibration-proof is of highest importance, R&S industrial plugs and sockets are always the right choice. With our over 100 years of experience, we can support you in your current and future challenges.
Rated current: 160 A – 600 A
Rated voltage: up to 1,000 V
Achieve maximum safety
To ensure maximum safety, all male industrial electrical connectors are provided with pilot contacts to facilitate electrical interlocking, which prevents plugging and pulling when loaded. Furthermore, each industrial socket is equipped with finger touch protection.
Cut your energy costs
Thanks to our silver-plated contacts, which boast low resistance and minimal power losses, you can cut your energy costs and enhance your efficiency.
Lower your maintenance costs
All product components are easy to maintain and can be quickly and easily replaced on site if necessary. The contacts are fitted as standard, so there is no need for expensive retrofitting. Extremely simple installation with standard tools ensures you do not waste any time or costs.
Increase your system’s reliability
Our connectors are reliable in adverse environmental conditions, are suitable for temporary immersion under water and are dust-proof. The robust and corrosion-resistant design can withstand loads of up to 2 tonnes and temperatures ranging from -40°C to +100°C.
Get a customised solution
On request, we adapt our industrial electrical connectors in line with your project’s specific needs. Our range is rounded off by accessories such as water-resistant connector housings and vibration-proof screws.
