Atlas Wedge - Re-Rolled Screen
Re-rolled Screen with the Welded Bar and Micron Slot Size for Sand Control in water wells. This type of wedge wire well screen has a re-rolled construction. The spacing or gap between the support rod is precise. The sizes of the wire diameter and the rod depend on the depth of the well. The wire is v shaped axial wire, the support rod can be round, triangle shape. Axial wire diameters: 0.1mm, 0.25mm, 0.5mm, 0.75mm, 1.00mm. Reverse rolled wedge wire screen materials can be low carbon galvanized (LCG) and stainless steel (SS). The well screen`s OD outside diameter is decided by the ID of the well and the casing pipe, the ID of the screen depends on the pump. The connection of the well screen is welding or thread.The unit length of the reverse rolled well screen is 2.9m or 5.8m. The carbon steel screen is galvanized to prolong the life of the screen.

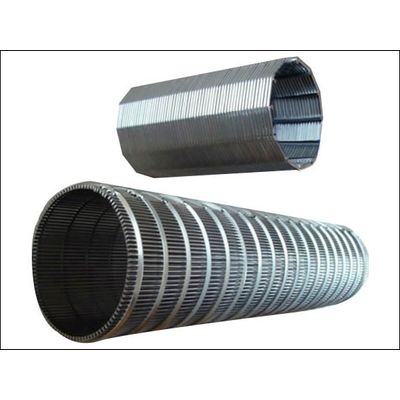

Re-rolled wedge wire screen
- Sizes in mm
- Rerolled FITO construction, axial wire
- Possible slot sizes: 0.1/0.25/0.50/0.75/1.00 mm
- support rod gap approx 18.52mm
- profile welded to the last wire to ensure wire does not get ripped out
Specifications:
Slot (mm): 0.05,0.1,0.25,0.50,0.75,1.00,1.50,2.00,3.00...60mm
Filtering method: From inside to outside
Standard length: 1m/5.85m or custom
Uses: Re rolled construction v wire screen tubing is suitable for water well drilling. It can be used in the water well, water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry and so on.
316L stainless steel wedge mesh V-type ladder type winding wire all-welded screen filter element
Wedge wire re-rolled screen for filter sand from water.
The re-rolled screen around 10 feet long with a 12 inch diameter opening. The wedge wire screen needs to be 4 feet wide by 8 feet long. Wedge dimensions 1/16 inch wide by ¼ inch long with a 13° bend in it.
