LNEYA Refrigeration, Inc.

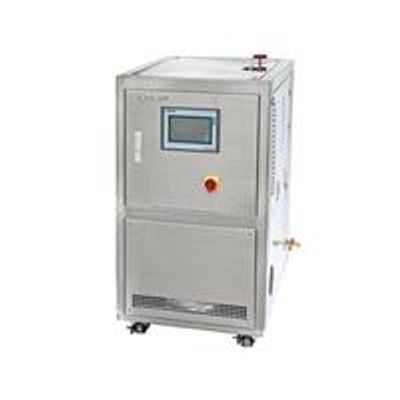

LNEYA - Model SUNDI -10℃~200℃ -Reactor Temperature Control System
The system with feedforward with PV, the master PID loop operation results of the PV output and feedforward signals as the composite of the settings from the control loop, through such control of the temperature gradient, to ensure the accuracy of temperature control system.
Most popular related searches
- Temp. range : -10℃～+200℃
- Control Mode : Feedback PID + Our special dynamic control calculation, PLC controller
- Temp. control : Process temp. control and jacket temp. control model
- Temp. difference : Set or control the temperature difference between jacket oil and raw material process
- Program Editor : 10 programs, each program can edit 42 steps
- Communication Portocol : MODBUS RTU Protocol, RS485 interface
- Material temp. feedback : PT100 OR 4～20mA or communication（normal: PT100)
- Temp. feedback : The temp. of three points: the inlet and outlet of equipment,reactor material temp.(external temp. sensor)
- Medium temp. acccuracy : ±0.5℃
- Material temp. accuracy : ±1℃
