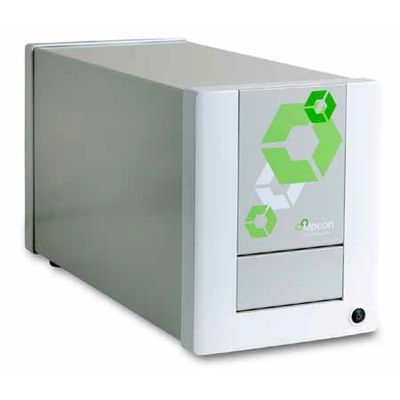

Labrox - Model Upcon -Reader
Labrox Upcon readers are modular, versatile and require minimal maintenance. Extremely compact and light, they will fit almost any lab space and the automation interface is customizable to most open system stackers and automation lines.
General
Plate types: 6 – 1536 well-plate
Measurement modes: Endpoint / Kinetic / Area scan
Reading modes: Top / Bottom
Dynamic filter storage capacity: Up to 32 optical filters (Ø 15 mm or ½”).
Dichroic mirror slide capacity: Up to 5 dichroic mirrors (26 mm x 18 mm).
Z-focus: 0 – 16 mm
Temperature control: Ambient + 3°C to 65°C
Shaking modes: Linear / Orbital / Double orbital
User interface program: Loaded into the reader. PC is not included.
Instrument connection: Ethernet
Dimensions (w x h x d): 202 mm x 268 mm x 495 mm / 7.9” x 10.6” x 19.5”
Weight: 13 kg / 29 lbs
Power consumption: Max 120 W with temperature control on
Mains voltage: 110 – 230 V, 50 / 60 Hz
Environmental conditions
Operating conditions: +15°C to +35°C, relative humidity < 80 %
Transportation and storage conditions: -20°C to +50°C, relative humidity < 90 %
Performance
Upcon sensitivity: 3 pg / ml
Upcon dynamic range: 5 decades
