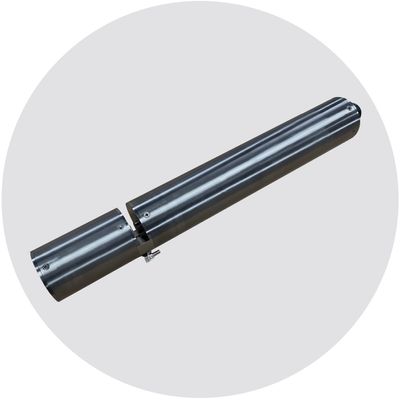

Real Tech - Model CA Series -Real Colour Probe
Real Tech’s robust submersible Colour probe provides affordable real-time measurement of colour changes in water or wastewater in accordance with ISO 6271-2016:05. The probe utilizes patent-pending technology to provide superior measurement performance across multiple wavelengths of light using LEDs. The probes rugged body is built to withstand harsh environments, with titanium or stainless steel options. Designed to meet the needs of many monitoring applications, the CA series offers multiple path length selections for the desired measurement range. Parameter(s): Colour.
- Affordable real-time colour monitoring
- Multiple wavelength sensor uses patent-pending technology for superior measurement performance
- Robust submersible probe with titanium housing
- Operator friendly, low maintenance design
- Reagent free optical measurements
- In accordance with ISO 6271-2016:05
- Simple to install and operate
Ideal for open channel applications, Real Tech’s Colour probe is a submersible instrument installed directly in-situ. The Colour probe must be connected to a Real Tech controller for operation.

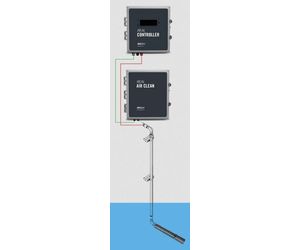

EXAMPLE CONFIGURATION
- Real Controller
For affordable, user friendly operation and control - Air Cleaning System
For low maintenance automatic cleaning - Mounting Kit
For secure mounting to a tank or open channel wall, or railing - Colour Probe
For real-time colour continuous measurement
Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
Simple to install, easy to operate, no reagents and no waiting for delayed lab results.
Characteristic: Technical Data
- Path Length Options: 1 mm, 2 mm, 4 mm, 10 mm
- Parameters: Colour
- Range: Depends on model selected. Refer to range chart
- Accuracy: ± 0.5% full scale
- Units: PCU, PtCo or HU (hazen units)
- Sampling Time: 10 seconds
- Calibration: Factory parameter calibration allows field adjustment as required.
- Cleaning : Automatic compressed air cleaning with optional Real Air Clean Systems
- Self-Diagnostic : Detection and diagnosis of internal system fault
- Alarms: Continuous detection of leaks, lamp output, humidity, temperature and electrical fault
- Humidity Control: Humidity sensor with desiccant pack
- Wavelength: Visible (VIS)
- Light Source: LED
- Electrical/Comm.: From controller
- Storage Temp.: -20 to 60°C (-4 to 140°F)
- Operating Temp. : 0 to 45°C (32 to 113°F)
- Housing Material: Titanium
- Weight : 4.6 lb
- Dimensions: 15" H x 2.0" Diameter
- Warranty: 2-year limited warranty (Extended care packages available)
* Technical Specifications are subject to change without notice.
