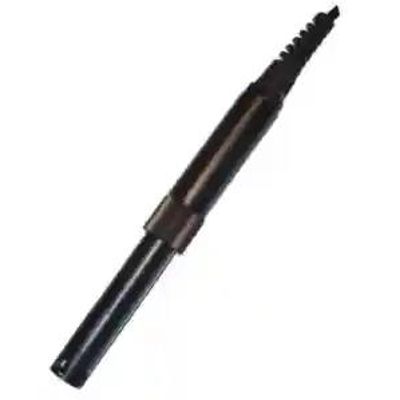

Real Tech - Model PHORP1000A / PHORP100L Series -pH/ORP Probe
Real Tech’s bypass pH/ORP sensor provides rapid real-time measurement of pH, ORP (redox) and temperature in water and wastewater. This compact and robust sensor is available as a submersible probe for open channel wastewater installations or as a bypass style sensor for pressurized water installations. Parameter(s): pH, ORP/redox, temperature.
Most popular related searches
real-time water quality monitoring system
real-time water quality monitoring
real-time water quality
water quality monitoring system
process water control
real-time water monitoring system
water monitoring
smart water network
industrial wastewater discharge
ultrapure water monitoring
LIQUID AI COMPATIBLE
Our Liquid Ai data services complement our real-time water quality monitoring systems. Our Remote Monitoring platform is a powerful data management and visualization tool that enables access to data anywhere, anytime.
- Affordable real-time pH, ORP and temperature monitoring
- Combined electrode technology
- Range for wastewater to high purity applications
- Robust and compact design
- Innovative reference increases lifetime
- Simple to install and easy to operate
- Source Water Monitoring & Protection
- Coagulation Optimization
- DBP Formation Potential
- Smart Water Networks
- Sewage Monitoring
- Chemical Dose Optimization
- Aeration Optimization
- Advanced Treatment Monitoring & Protection
- Effluent Pollution Management
- Process Water Control
- Cooling Water Contamination
- Boiler Feedwater Impurities
- Ultrapure Water Monitoring
- Product Loss Monitoring
- Water Reuse Optimization
- Chemical Dose Optimization
- Aeration Optimization
- Nutrient Dose Optimization
- Advanced Treatment Monitoring & Protection
- Industrial Effluent Discharge Management
- Parameters: pH, ORP, temperature
- Range: 0 – 14 pH
- Accuracy: +/- 0.1 pH
- Resolution: 0.01 pH
- Measurement Principle pH: Combined electrode (pH/ref): special glass, Ag/AgCl ref. Gelled electrolyte (KCl)
- Measurement Ranges: -1000 to 1000 mV
- Accuracy: +/- 2 mV
- Resolution: 0.01 mV
- Measurement Principle Redox: Combined electrode (Redox/ref): Platinum tip, Ag/AgCl. Gelled electrolyte (KCl)
- Temperature Compensation: NTC thermistor
- Electrical/Comm.: From controller
- Storage Temp.: 0°C to +60°C
- Weight: 1 lb
- Warranty: 2-year limited
- PHORP1000A ONLY:
- Dimensions: 8.15”H x 1.06” Diameter
- PHORP1000L ONLY:
- Flow Rate: 300-1000 mL/min
- Pressure Rating: 5 PSI maximum
- Fluid Connections: 1/4” OD tube push-in fittings
- Dimensions : 6.00”H x 3.26”W x 9.63”D
* Technical Specifications are subject to change without notice.
