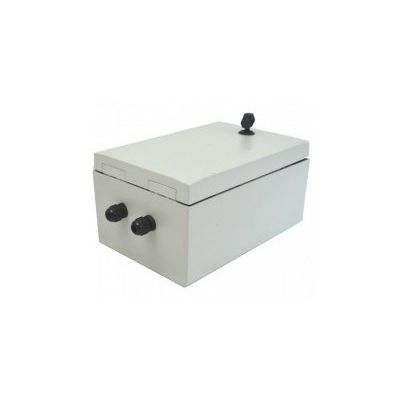

Munro - Model DL1000 -Real-Time Datalogger

It has the following key features:

• Real-Time Monitoring – View live data locally or remotely on a clear graphical display in your web browser.
• Mathematical & Alarm Functionality – Easily configured through user-friendly software.
• Robust – Suitable for use in extreme environments.
• Versatile – Connect a wide range of sensors through analogue and digital input channels.
• Modbus RTU Channels – Use as either a Modbus Master or Slave.
• Ethernet Interface – Send data through the Ethernet port for wired or wireless transmission.
• Simple Data Export – Logged data can be exported to CSV for easy analysis.

• Analogue Channels: 8 universal channels - V, mV, mA, Pt100, Pt1000
• Frequency: Up to 1000 Hz
• A/D Resolution: 24 bit A/D conversion resolution
• Digital Channels: 8 digital I/O`s
• Serial Channels: RS485, FTP modbus
• Calculated Maths Functionality: 128 Maths Channels
• Alarm Functionality: 32 Configurable Alarms
• Relays: 3 - Normally Open, Normally Closed & Common up to 3A @ 150VAC or 30VDC
• Data Acquisition Rate: Up to 100 different channels can be logged at different rates
• Number of Smart Sensors: 64 Smart Sensors can be polled when acting as a modbus master
• Internal Storage: 512 K
• Communication Interfaces: RS485 interface (master and slave), USB interface and host, ethernet interface, wireless (UHF, Zigbee)
• Power Supply: 100-240 VAC or 24VDC
