SCS Controlsys - Model SCS-9077 & CityNoise -Real-Time & Wireless Environmental Monitoring
A New Concept and New Technologies to Measure, Analyse, Storing and Sending of data of Environment Quality in multi-parameters configuration. Web based configuration and monitoring interface, Abundant on-board storage, Run custom programs on-board for autonomous operation, Wireless sensors, Autopowered, Solid-state elements, Mems, etc. Customized solution to adapt to any circumstance of monitoring in big and small town, for traffic, city-train, high speed train, harbour, internal living, public place, garden. An integral part in Urban design, Soundscape, City monitoring.
Represent the next evolution of the EnviNetWork project (upon directions of Environmental Protection Agencies and Universities in Italy North-east) with the goal to develop low-cost and low power Multi-parameter Environmental Monitoring Systems using software released under GNU-GPLv3 license and Creative Commons CC-BY-SA. The main application of the SCS-9077 is to monitor the territory and make all data available to a NetWork (Citynoise TM), either for professional, private or public access to data. Two are the specific and unique features of the system: the proprietary data-base technology which allows to keep all-way synchronized locally stored data (inside each station) with the central/common data-base within a professonal studio, public office or Surveillance town center, and the wireless characteristic of all sensors and data transmission.
- Local data storage inside SCS9077 and download via LAN, WiFi, FTP
- Private Point-to-point conneciton between NMT station and your PC, featuring Real time data transmission or at pre-defined time interval, or via ftp request
- WEB connection GPRS-UMTS and use of CityNoise cloud
- City monitoring, traffic control, public area protection
- Video-audio surveillance
- Highway and railways monitoring
- Port and Airport monitoring
- Eolic farms monitoring
- Production site noise monitoring
- Working place, infrastructures and building construction area
- Recreation area, Touristic and Historical site, Soundscape
- EU Directive 49 – information to public
- Interface to Predicition Softwares for Noise mapping and Air-Pollution cartographies
- Rotating machines surveillance: noise, vibration, etc.
- Noise source location
- Noise source recognition
- Audio-Video recording
- GPS refernce
- Building vibration
- Meteo data
- CO, NOx, SOx
- PM 2.5 and PM 10
- Traffic counter, vehicle speed and category
- Solar radiation
- Oxidation-Reduction, pH, Temperature in civil structures
- Fuel dilution
- Indoor or outdoor parking control
- Current and Voltage, electrical consumption
- Water, Electricity, Gas counters control
- Monitoring of lifting devices (Elevators, cranes)
(1) SCS9077 are supplied with Meteo Stations Davis Vantage-PRO. However, the stations are designed to support SLM and RTA of other trade-marks (01dB, Cesva, Norsonic, B&K, etc.). Not all functions-parameters might be availabe upon the instrument type.

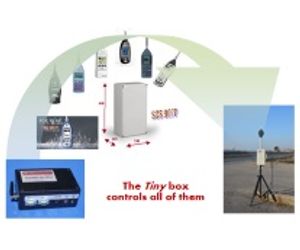

SCS9077B: The tiny box controls all of them…
Originally designed for “one (of the) Sound Level Meter” now it controls most of them within a tiny box of about 20x10x10cm, weighting 400 gr, including 24h battery, using WiFi and 3G for talking to the world!
The tiny box SCS9077B is available as a stand-alone device to transform your own SLM (..may be little old) class I or II in an efficient and economic Noise Monitoring Unit usable everywhere with or without outdoor system box, like SCS9077.
Data are taken and stored inside (up to 16GB), transfered via 3G or WiFi, WiMax, Ethernet, in a readable, clear and simple format user defined.
