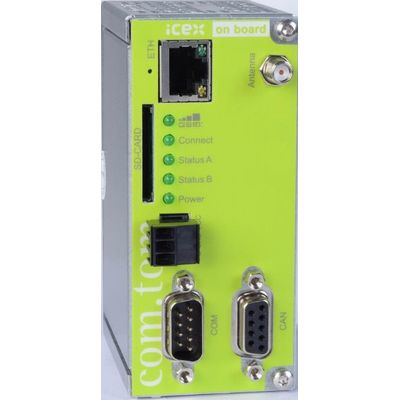

RealiteQ iCEX - Model ICX-COMTOM-R3.0 -Integrated Cellular and Ethernet Explorer System

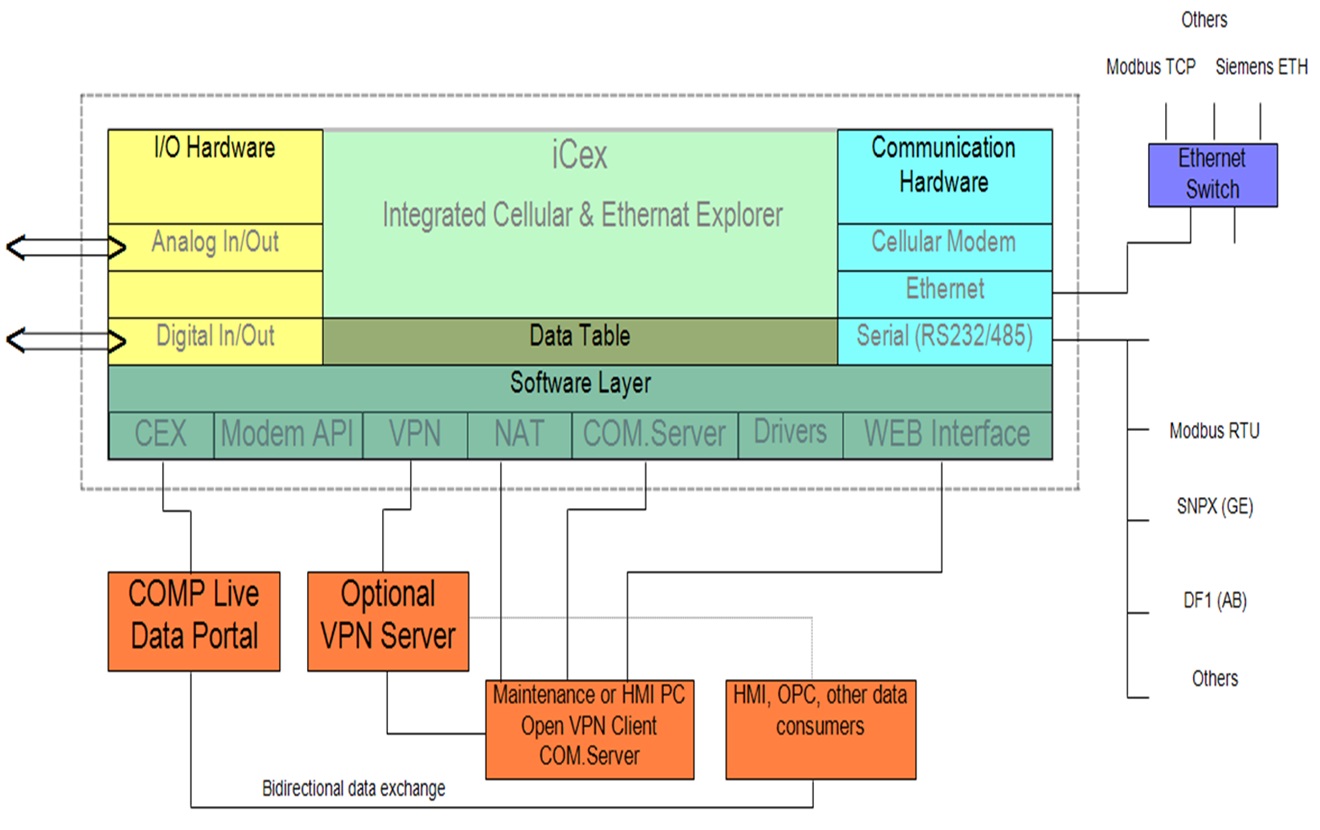

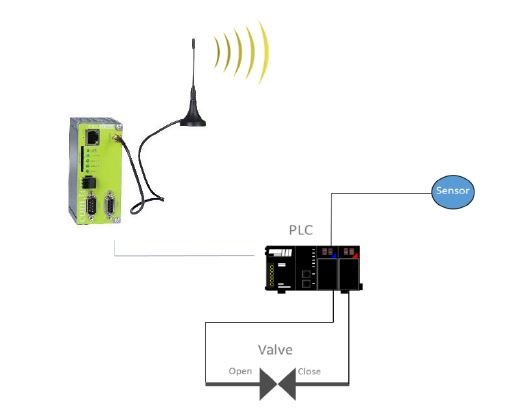

iCEX (Integrated Cellular and Ethernet explorer) is a Series of Embedded or Encapsulated Smart Data Producers. They explore data from sensors, analyzers, PLC and other devices over I/O, Ethernet or Serial protocols, and link them to the internet (RealiteQ Central OnLine Management Portal -COMP) by any cellular, satellite, Ethernet or other connections. There are several iCEX models with different features to cover any specific site needs. ICX-COMTOM-R3.0 is basic model, designed for cellular communication via GSM/GPRS.
Most popular related searches
- Ethernet: 1 x 10/100Base/T, RJ45 connector with traffic and link LED
- Serial Interface: 1 x RS232/485 (D-SUB 9 pins connector)
- Supply voltage: 10-30 VDC
- Operating system: IPC@CHIP® RTOS
- Status LEDs: 5 (power, connect to GSM network, Internet, COMP, and devices in the field)
- Operating temperature: 0-55 ºC
- Size (W x L x H): 46 x 105 x 70 mm 1.8 X 4.2 X 2.8 Inch
- Material: Continuously hot-dip aluminum-zinc coated steel sheet (DIN EN 10215)
- Mounting: 35 mm DIN rail
- Additional function: c/c++
- Modem: Quad band GSM (850/900/1800/1900 MHz); (SIM card interface in the back)
- Second Serial port: None
- CAN Interface: 1 x CAN
- Active current: Max 120mA @ 24VDC
- Analog I/O: none
- Digital I/O: none
