RealiteQ iCEX - Model ICX-COMTOM-R9.0 -Integrated Cellular and Ethernet Explorer System

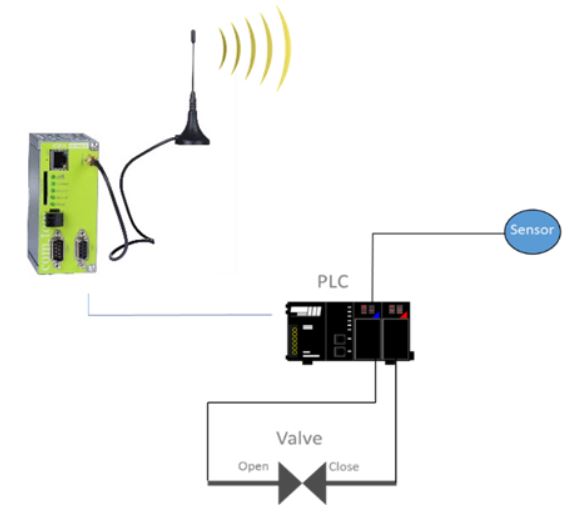

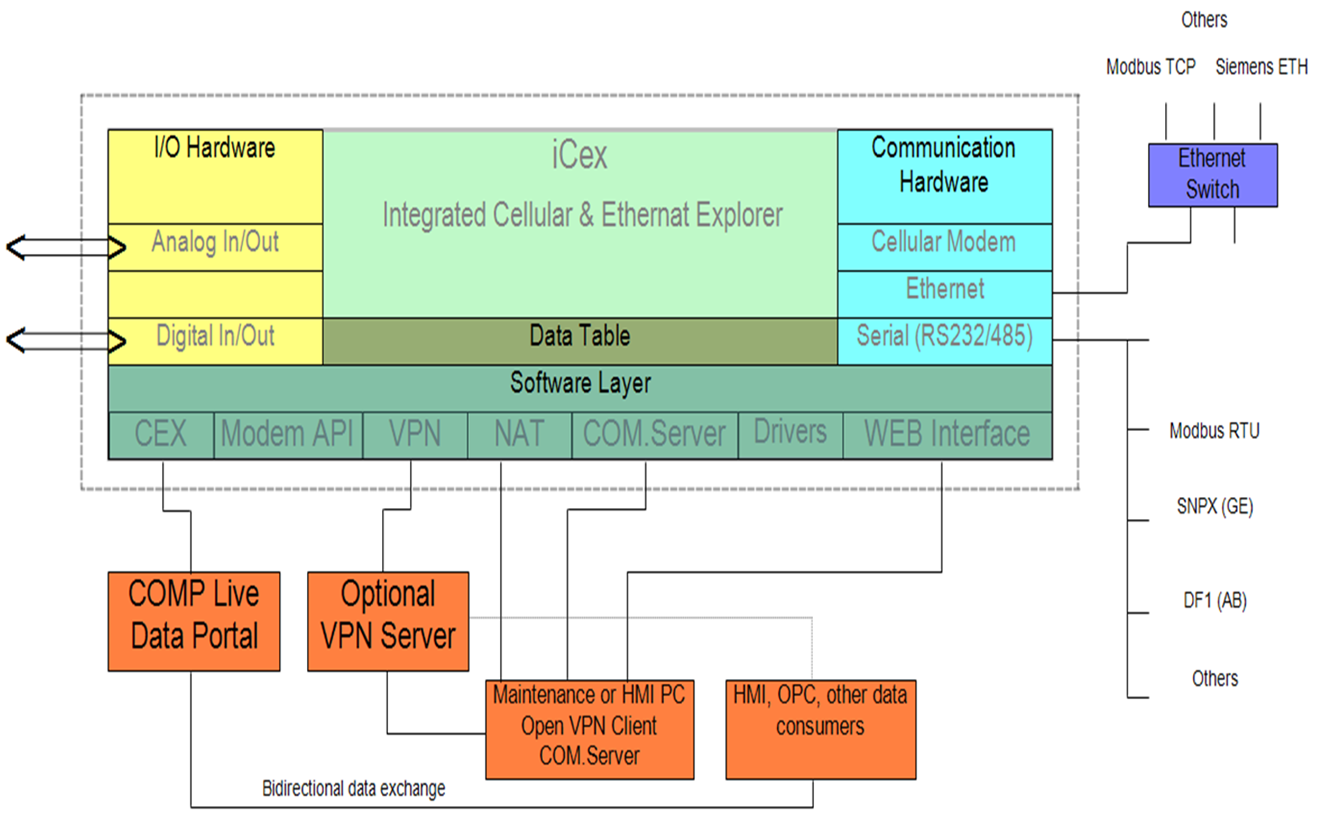

iCEX (Integrated Cellular and Ethernet explorer) is a Series of Embedded or Encapsulated Smart Data Producers. They explore data from sensors, analyzers, PLC and other devices over I/O, Ethernet or Serial protocols, and link them to the internet (RealiteQ Central On-Line Management Portal -COMP) by any cellular, satellite, Ethernet or other connections. There are several iCEX models with different features to cover any specific site needs. ICX-COMTOM-R39.0 is special model with two built in GSM modems. It holds two different SIM cards from different cellular providers. It’s designed to prove redundancy in cellular communication to COMP, especially in places where cellular coverage is week or with drops and continuously communication with COM is highly important.
- Ethernet: 1 x 10/100Base/T, RJ45 connector with traffic and link LED
- Serial Interface: 1 x RS232/485 (D-SUB 9 pins connector)
- Supply voltage: 10-30 VDC
- Operating system: IPC@CHIP® RTOS
- Status LEDs 5: (power, connect to GSM network, Internet, COMP, and devices in the field)
- Operating temperature: 0-55 ºC
- Size (W x L x H): 46 x 105 x 70 mm 1.8 X 4.2 X 2.8 Inch
- Material: Continuously hot-dip aluminum-zinc coated steel sheet (DIN EN 10215)
- Mounting: 35 mm DIN rail
- Additional: function c/c++
- Modem: 2 x Quad band GSM (850/900/1800/1900 MHz) (2 x SIM cards interface in the back) Second Serial port: None
- CAN Interface: 1 x CAN Active current Max 140mA @ 24VDC
- Analog I/O: none
- Digital I/O: none
