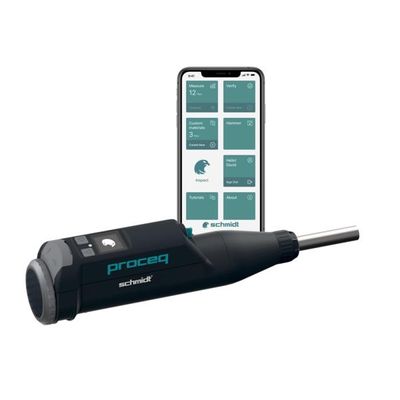

Proceq Original Schmidt - Model OS8000 -Rebound Hammers

• Estimation of compressive strength of concrete
•  Mapping of concrete uniformity
•  Control of concrete curing for formwork removal

The most advanced R-value hammer ever made. Less coring, with concrete strength and uniformity evaluation

Simplicity
Test on-site and share results up to 80% quicker compared to analog hammers. Eliminate operator errors thanks to automatic impact angle correction and series evaluation according to standards.

Productivity
Cloud synchronization of your measurements. Comprehensive mobile apps and web-based functionality enhances productivity and makes instantaneous reporting possible.

Reliability
All mechanical components are Original Schmidt components to ensure durability and standards compatibility

Workflow features

• Voice read-out of each impact (only on iOS®)
• Logbook with geolocation, audio, image and text annotations
• Series statistics
• Single series reporting: PDF, CSV Test-region reporting (multiple series): PDF, CSV, uniformity report, EN13791 characteristic strength report

Display

• Any compatible Apple® iOS device
• (please see App Store for details)
• Any supported Android™ device
• (please see Google Play Store for details)

Measurements

• Test region reporting
• Select units, form factor and correlation curves
• Create your own custom curves
• Create custom curves databases for your own mixes

• Instrument Firmware: Automatic calculation of rebound value according to international standards
• Display: Analog & backlit digital (100 x 100 pixels, graphic)
• Impact Energy: 2.207 Nm (N), 0.735 Nm (L)
• Compressive Strength Range: 10 to >100 N/mm2 (1`450 to>10`152 psi)
• Memory: Instrument memory > 20,000 impacts
• Display memory - Memory of iOS or Android device
• Connections: Low energy Bluetooth®, USB for charging and updates
