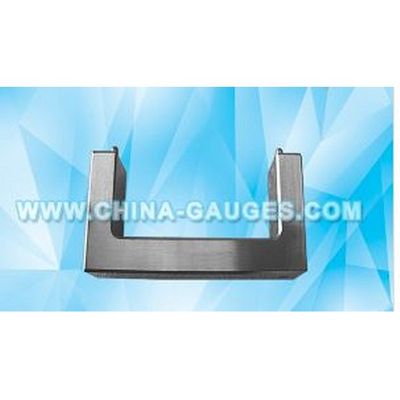

HK - Model UL 498 Figure 124.1 -Receptacle Test Fixture

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2017 standards. And the mainly application industries is electronics, electrical  appliances, plugs and sockets and other similar areas. - See more at: http://www.china-gauges.com/product/UL-498-Figure-124-1-Receptacle-Test-Fixture.html#sthash.20q4Y1DL.dpuf

• Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
• Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
