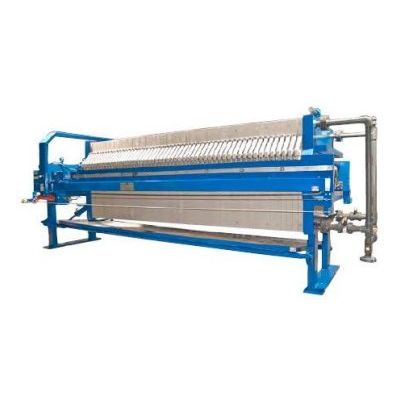

ErtelAlsop - Model EA 1200 & EA 1500 -Recessed Chamber Filter Presses
ErtelAlsop is a US Based filter press manufacturer. Our EA Series sludge dewatering presses are perfect for municipal sludge and sewage sludge treatment. Supplied with lightweight, economical polypropylene plates, these chamber filter presses are ideal for processes that require 50-300 cubic feet of solids handling. With gasketed plates standard, these heavy-duty sidebar filter presses are exceptionally suited for all applications where leak-free processing is required.
ErtelAlsop offers Our Model EA 1200mm and 1500mm Filter Press with lightweight, economical polypropylene plates. Ideal for processes that require 50-300 cubic feet of solids handling. These heavy-duty presses are suited for applications where leak-free processing is required. Filter cloth is available for any application.
- High Strength Carbon Steel Skeleton
- Chemically Resistant Painted Framework
- 304 Stainless Steel Side Bar Wear Strips
- Schedule 80 PVC Head Connections
- 4 Corner Discharge Porting
- Caulk & Gasketed Recessed Polypropylene Plates
- 32mm Cake Thickness
- Hydraulic Closure System
- Full Six Year Framework Warranty
Optional Features
- Flush Plate and Frames
- Membrane/Squeeze Plates
- Membrane Water Squeeze System
- Various Plate Materials
- Uniform Fill Manifold - Stainless, Aluminum, Carbon Steel, FRP or CPVC
- Head Connections - Stainless, Aluminum, Carbon Steel, FRP or CPVC
- Cake Carts or Chute
- Plate Shifter
- Leg Extensions
- Elevated Platforms
- Safety Gates, Lanyards or a Safety Light Curtain
- Splash Curtains
- Semi-automatic or Automatic Bombay Doors
- Feed Pumps: Air Operated Diaphragm (AOD)
- Automatic Pump Controller
- Blanking Plate
- Thorough Wash Capability
- Expansion Capability
- Alternating Discharge (1B & 3B)
- Automatic Air/Oil Hydraulic Closure System
- Electric Hydraulic Closure with PLC Controls
- Cake Thickness from 20-50 mm
- Wide Selection of Filter Media
- Cloth Washers
- Industrial Wastewater
- Environmental Remediation
- Metals and Mining
- Petrochemical
- Pulp and Paper
- Food and Beverage
- Biodiesel Dry Wash Separation
- Ethanol Filtration
Product testing is always available either at your facility, through our international network of distributors, or at our in-house laboratory.
Pilot Testing – Rentals
For in-plant testing and scale-up procedures, ErtelAlsop offers a variety of lab filters for rent. A portion of rental fees can be applied to the purchase of your full production filter.
