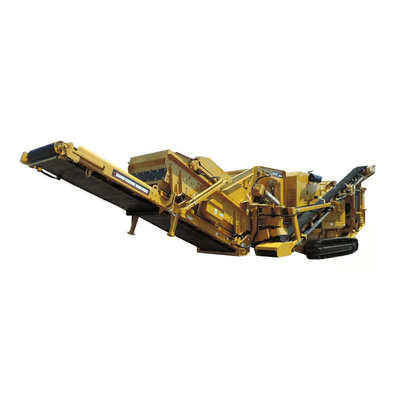

Screen Machine - Model 4043TR -Recirculating Impact Crusher

• A large two-deck screen, fed directly from the crusher, delivers sized product off the fines conveyor
• An additional radial overs conveyor feeds directly back into the hopper, or can be positioned to the side for stockpiling

The 4043TR incorporates two of our patented technologies — the Crusher Relief System for the crusher lid and Smooth Start® for the screen box. For unmatched productivity, especially in areas such as road construction where a smaller footprint is needed, the 4043TR is an ideal choice.

• Crusher
  • 40″ x 43″ (1m x 1.1m) Horizontal impact crusher
  • 43″ x 32″ (1.1m x .8m) Feed inlet opening
• Screen
  • Heavy-duty double deck 5′ x 12′ (1.5m x 3.7m) two bearing screen with downhill throw
  • US-made Grade 80 steel screenbox
• Engine & Controls
  • Caterpillar® C-9 ACERT Tier III 350 HP (261 kw) diesel engine
  • Laird® wireless remote control operation
• Hopper / Feeder
  • 40″ x 13′-0″ (1m x 4m) Vibratory grizzly feeder
• Conveyors
  • 42″ (1066mm) Main Belt
    • 11′-3″ (3.43m) Discharge height
  • 48″ (1219mm) Fines Belt
    • 11′-3″ (3.43m) Discharge height
    • Delivers sized product from front of machine
  • Cleated 20″ (508mm) Recirculating Belt
    • 7′-0″ (2.1m) Discharge height
    • Can be used as a side stacker
  • 24″ (.6m) Fines Side Conveyor
    • 7′-0″ (2.1m) Discharge height
• Unique/Patented Features
  • Remote Crusher Relief System– US Patent #7,229,041
  • Smooth Start®Technology – US Patent #6,669,026
  • Fully adjustable cross-belt magnet with stainless steel chutes
• Structure / Undercarriage
  • US-made Grade 80 steel construction
  • Heavy-duty tracked undercarriage
